Home / LP-CC-12 BSF

LP-CC-12 BSF

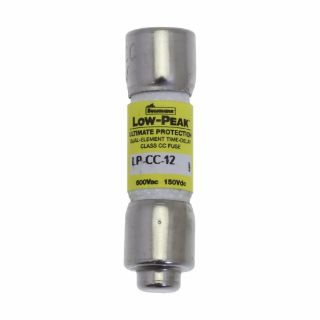

Picture of LP-CC-12 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
LP-CC-12
product.name:
LP-CC-12 BSF
CBT Inventory
3
Vendor Inventory
Loading...
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
$85.04 / EA

Description

Brand Name

Bussmann

Type

Current Limiting

Alternate Supplier #

Fastenal - 0761227

Description

Bussmann's Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection
Bussmann Low-Peak™ Time Delay Fuse, Current Limiting, Series: LP-CC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 12 A, 600 VAC/150 VDC, 20/200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size

Application

Branch Circuit Protection, Specialized Circuits, Industrial Control, Panels, Isolated and In-Line Fuse Holder, Safety and Security Systems

Standards

CE Certified | CSA 1422-02/File No. 53787 | RoHS Compliant | UL 248-4 | UL File No. E4273 | UL Guide JDDZ

Features

  • Time delay coupled with class CC current-limiting response provides close sizing on small motor and relay circuits and maximum component short circuit current rating protection
  • 200 kA interrupt rating provides high ratings for control circuit locations
  • Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
  • Inventory consolidation of 13/32 x 1-1/2 in supplementary fuses reduces SKU investment and minimizes potential for misapplying fuse
  • Selective co-ordination ratio of 2:1 (within Low-Peak™ fuse family) prevents electrical shutdowns from extending beyond the failed circuit
  • Finger safe design with the Bussmann series class CF CUBE fuse

Specifications

Amperage Rating:12 A
Body Size:13/32 in Dia x 1-1/2 in L
Body Type:Cartridge
Class:CC
Color:Yellow
Country of Origin:MX
Element:Dual
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:20/200 kA
Material:Melamine
Mounting Type:Holder
Rejection/Non-Rejection:Rejection
Response Time:12 s at 200%
Series:LP-CC
Terminal Type:Ferrule
Voltage Rating:600 VAC/150 VDC
