Home / LP-CC-4 BSF

LP-CC-4 BSF

Picture of LP-CC-4 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
LP-CC-4
product.name:
LP-CC-4 BSF
CBT Inventory
28
Vendor Inventory
Loading...
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
$73.37 / EA

Description

Brand Name

Bussmann

Type

Current Limiting

Alternate Supplier #

Grainger - 1CX59
Fastenal - 0761242

Description

Bussmann Low-Peak™ Time Delay Fuse, Current Limiting, Series: LP-CC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 4 A, 600 VAC/150 VDC, 20/200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size

Application

Branch Circuits, Specialized Circuits, Industrial Control and Street Lighting Applications, Safety and Security Systems

Standards

CE Certified | CSA 1422-02/File No. 53787 | NEC 110.9 | RoHS Compliant | UL 248-4 | UL File No. E4273 | UL Guide JDDZ

Features

  • 200 kA interrupting rating complies with NEC section 110.9 for today's large capacity systems
  • Fast short circuit protection and dual element, time delay performance provide ultimate protection
  • Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak™ fuses
  • Consistent 2:1 ampacity ratios for all Low-Peak™ fuses make selective co-ordination easy
  • Time delay characteristic avoids unwanted fuse openings from surge currents while fast response speed under short circuit conditions provides a high degree of current limitation
  • Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
  • A superior, all purpose, space saving branch circuit fuse that meets most protection requirements up to 30 A
  • Very compact, with a physical size only 13/32 x 1-1/2 in with rejection tip
  • Proper sizing can provide "no damage" type 2 motor starter protection for NEMA® and IEC® motor controllers
  • Can be used where either a time delay or a fast acting fuse is needed, making selection easier and reducing spare fuse inventories for substantial cost reduction
  • Superior protection for small horsepower motor circuit
  • 12 s minimum at 200% of rated current response time
  • 200 kA at 600 VAC rms symmetrical, 20 kA at 150 VDC interrupt rating

Specifications

Amperage Rating:4 A
Body Size:13/32 in Dia x 1-1/2 in L
Body Type:Cartridge
Class:CC
Color:Yellow
Country of Origin:MX
Element:Dual
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:20/200 kA
Material:Melamine
Mounting Type:Holder
Rejection/Non-Rejection:Rejection
Response Time:12 s at 200%
Series:LP-CC
Terminal Type:Ferrule
Voltage Rating:600 VAC/150 VDC

Resources

Video

Customers who bought this item also bought

Picture of LP-CC-10 BSF

LP-CC-10 BSF

MFG: Bussmann
MFG#:LP-CC-10
Info:Bussmann Low-Peak™ LP-CC-10 Current Limiting Time Delay Fuse, 10 A, 600 VAC/150 VDC, 20/200 kA Interrupt, CC Class, Cylindrical Body
$ -.--
Picture of LP-CC-20 BSF

LP-CC-20 BSF

MFG: Bussmann
MFG#:LP-CC-20
Info:Bussmann Low-Peak™ LP-CC-20 Current Limiting Time Delay Fuse, 20 A, 600 VAC/300 VDC, 20/200 kA Interrupt, CC Class, Cylindrical Body
$ -.--

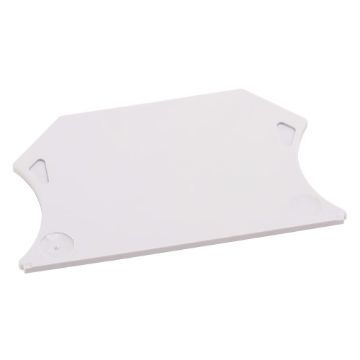

Picture of 1492EBJD3 AB
