Home / LPN-RK-15SP BSF

LPN-RK-15SP BSF

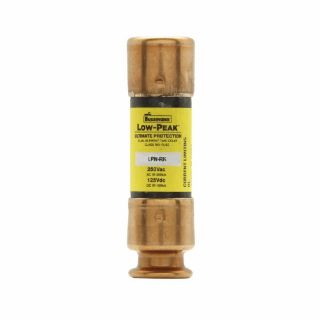

Picture of LPN-RK-15SP BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
LPN-RK-15SP
CBT Inventory
4
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
4
CBT - LEXINGTON
0
Availability:
Expected Leadtime 14 days
Estimated dates are contingent upon manufacturer stock.
$31.50 / EA

Description

Brand Name

Bussmann

Type

Current Limiting Time Delay

Alternate Supplier #

Grainger - 4XF53

Description

Ultimate protection Class RK1 dual element, current- limiting time-delay fuses available with optional open fuse indication. Time-delay - 10 s (minimum) at 500% of rated current (8 s for 0 to 30 A sizes).
Bussmann Low-Peak™ Fuse, Current Limiting Time Delay, Series: LPN-RK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 15 A, 250 VAC/125 VDC, 300/100 kAIC Interrupt, Class: RK1, 8 s at 500% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 0.56 in Dia x 2 in L Body Size

Application

Branch Circuit, Large Distribution Switchboards, Power Panelboard, Motor Control Centers and Machinery Disconnect Switches, Safety and Security Systems

Standards

CE Certified | CSA C22.2 | UL Listed

Features

  • Fast short circuit protection and dual element, time delay performance provide ultimate protection
  • Easy selective coordination with all Low-Peak™ fuses using simple 2:1 ampacity ratio
  • Current limiting for maximum short circuit protection
  • No damage Type "2" protection for IEC and NEMA motor starters when properly sized
  • High inrush current motor protection
  • Time delay permits 130% FLA sizing for back-up motor protection
  • Provides protection against 1 ph motor damage
  • Low wattage loss power consumption
  • Electrically isolated end caps for additional safety
  • Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak™ fuses

Specifications

Amperage Rating:15 A
Body Size:0.56 in Dia x 2 in L
Body Type:Cartridge
Class:RK1
Country of Origin:MX
Element:Dual
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:100 kA
Material:Melamine
Mounting Type:Holder
Rejection/Non-Rejection:Rejection
Response Time:8 s at 500%
Series:LPN
Terminal Type:Ferrule
Voltage Rating:250 VAC/125 VDC

Resources
