M300667 FER

MERSEN PSC fuse links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These square body fuse links are available in four different body sizes, each size having seven worldwide acceptable mounting styles. The different mounting styles and body sizes long with a broad range of ampere ratings allow greatest flexibility in equipment design. MERSEN PSC fuses have been engineered to provide state-of-the-art protection for SCR's, diodes, thyristors, GTO's and IGBT devices. They have pure silver, die cut elements embedded in solidified sand, which helps control arcing characteristics for low I2t and high interrupting rating. All contact surfaces are silver plated and all hardware is non-magnetic. All fuse links are equipped with a low voltage trip-indicator. This trip indicator can operate a field mountable microswitch which is easily mounted directly onto the fuse even while in service.

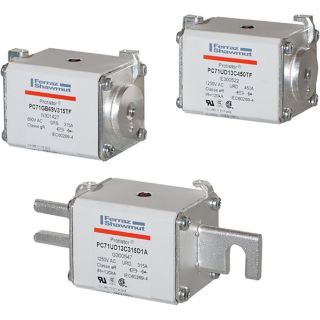

Mersen Protistor® PSC Semiconductor Fuse, Size 71 High Speed North American Style, 500 A, 1200 VAC, 100 kA Interrupt, Class: URD/aR, 50 Hz Frequency, Bolted Terminal, Straight/Slotted Long Blade Mounting, Square Body, Ceramic, 152.4 mm L x 51 mm W x 56.5 mm H Body
