M330038 FER

The 690/700 VAC Protistor® fuse links provide maximum flexibility in equipment design and ultimate protection for small power conversion equipment. The Protistor® gR have been engineered to provide full range protection to eliminate all overloads and semiconductor fault. Fuses are assembled with pure silver, die cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I2t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. Each fuse link can be equipped with a low voltage trip indicator which can operate a field mountable microswitch.

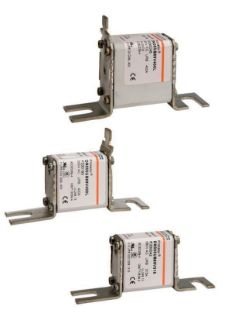

Mersen Protistor® Semiconductor Fuse, Size 000 European Style High Speed Vertical, 125 A, 690 VAC, 200 kA Interrupt, Class: URB/aR, 50 Hz Frequency, DIN 80 Blade Mounting, Square Body, Ceramic, 100 mm L x 20 mm W x 38.5 mm H Body
