M600U30 FER

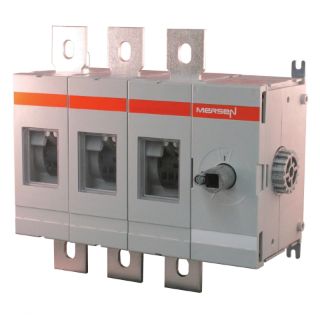

Picture of M600U30 FER
Actual Product May Vary From Image

Product Details

Manufacturer:
Mersen
Manufacturer part number:
M600U30
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 42 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,774.30 / EA

Description

Brand Name

Mersen

Type

Non-Fusible Front Operated

Description

MERSEN disconnect switches are extremely durable and versatile. These heavy duty switches are designed with the most up to date disconnect switch technology available. Designed to suit the UL 98 standard, the switch gives you a product that makes and breaks power circuits on load. The switches are tested and approved for use in demanding applications, such as Service Entrance.
Mersen Disconnect Switch, Non-Fusible Front Operated, 600 VAC, 600 A, 200 hp, 450 hp, 500 hp, 50 Hz Frequency, 3 Pole, Base Mounting, Blade Terminal, -40 to 40 deg C, 250 mm H x 266.2 mm W Dimensions, BE/PA66/6

Application

For service entrance or main panel disconnects, make and break power circuit applications on load, electrical isolation and safety switch

Standards

RoHS Compliant | UL Listed Guide WHTY | File No. E191605 | UL 98 | IEC 60947-3 | cUL Listed | CE Certified

Features

  • Service entrance rated
  • Front or side operation
  • Most compact size
  • Internally mounted auxiliary contacts
  • 200 hp at 240 VAC, 450 hp at 480 VAC, 500 hp at 600 VAC 3-phase horsepower rating

Specifications

Amperage Rating:600 A
Country of Origin:FI
Dimensions:250 mm H x 266.2 mm W
Frequency Rating:50 Hz
Horsepower:200 hp, 450 hp, 500 hp
Material:BE/PA66/6
Mounting Type:Base
Number of Poles:3
Temperature Rating:-40 to 40 deg C
Terminal Type:Blade
Voltage Rating:600 VAC
