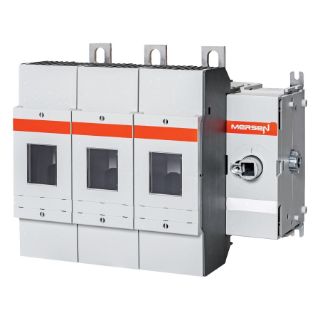

M60J30S FER

MERSEN fused disconnect switches are extremely durable, manually operated, and versatile. They employ double break contacts per pole that ensure complete isolation of the fuse when the switch is in the OFF position. They can accommodate Class CC, J or L fuses up to 1200 A. They have been tested and approved for use in the most demanding applications, such as Service Entrance. They have a TEST function that enables testing of the control circuit auxiliaries without switching the main contacts. This function provides a simple alternative to a separately wired push button. A wide array of handles is available to meet OSHA padlocking requirements, NEMA configurations, defeater options and NFPA 79 requirements. The best in class design allows these switches to have a significantly higher kW rating and smaller footprint than the competition.

Mersen Disconnect Switch, Class J Fusible Side Operated, 600 VAC, 60 A, 15 hp, 30 hp, 50 hp, 50 Hz Frequency, 3 Pole, Handle Actuator, Base Mounting, Tunnel Terminal, -40 to 40 deg C, 112 mm H x 178.4 mm W x 130 mm D Dimensions, BE
