MCX-26FP-FW-SC MEN

Name: MCX-26FP-FW-SC MEN
Brand: Mencom Corporation
SKU: MCX-26FP-FW-SC MEN
Price: 150.31 USD
Availability: InStock

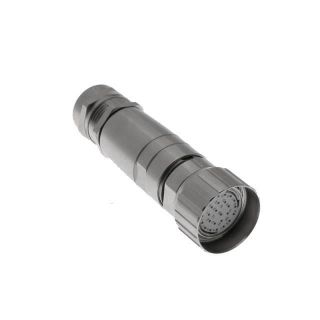

M27 Female Field Wireable Plug

Manufacturer: Mencom Corporation

Manufacturer part number: MCX-26FP-FW-SC

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
5	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$150.31

Qty:

Product Details

Type

Cables

Description

MC series connectors, sometimes referred to as M16, M23, or M27 connectors, provide rugged plug and play solutions for demanding industrial applications. Mencom offers molded cable, field wired connectors, and panel mount receptacles to meet your specific requirements.

Specifications

Amerage Rating:	1.5
Cable OD Range:	3-9mm
Component Type:	Field Wireable
Coupling Thread Gender 1:	Female
Gender:	Female
Groundwire:	No
Ingress Protection:	IP67
Lower AWG:	26
Mating Thread Type Head 1:	M27
Mencom Series:	MC
MVCH Pin:	no
Nut:	No
Orientation Head 1:	Female Straight
Pin Count:	26
Rated Block:	Field Wireable
Shell Coupling Nut Mater:	Nickel Plated Brass
Shielding:	No
Termination:	Solder Cup
Upper AWG:	18
Voltage Rating:	150
