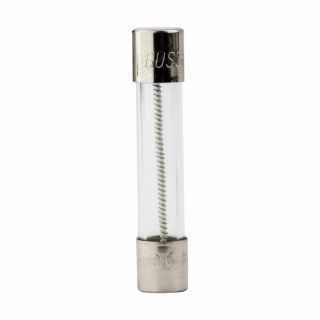

MDL-1-1/2-R BSF

Name: MDL-1-1/2-R BSF
Brand: Bussmann
SKU: MDL-1-1/2-R BSF
Price: 4.14 USD
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

MDL-1-1/2-R

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 21 days

Estimated dates are contingent upon manufacturer stock.

$4.14 / EA

Description

Brand Name

Bussmann

Type

Electronic Small Dimension

Description

Bussmann Time Delay Fuse, Electronic Small Dimension, Series: MDL, Non-Indicating, Non-Rejection, 1.5 A, 250 VAC/32 VDC, 100 A Interrupt, 60 min, 5 to 120 s Response, Ferrule Terminal, Clip/Holder Mount, Cylindrical Body Type, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body Size

Application

Electronic Circuit Applications

Standards

RoHS 2011/65/EU | UL 248-14, Guide JDYX, File No. E19180 | CSA Class No. 1422-01 | CE Certified

Features

Time delay allows close sizing on inductive circuits
100 A at 250 VAC, 10 kA at 125 VAC interrupt rating
60 min maximum at 135%, 5 sec minimum at 200%, 120 sec maximum at 200% response time

Specifications

Amperage Rating:	1.5 A
Body Size:	1/4 in Dia x 1-1/4 in L
Body Type:	Cylindrical
Country of Origin:	TW
Element:	Single
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100 A
Material:	Glass
Mounting Type:	Clip/Holder
Rejection/Non-Rejection:	Non-Rejection
Response Time:	60 min, 120 s, 5 s
Series:	MDL
Terminal Type:	Ferrule
Voltage Rating:	250 VAC
