MDQ-2 BSF

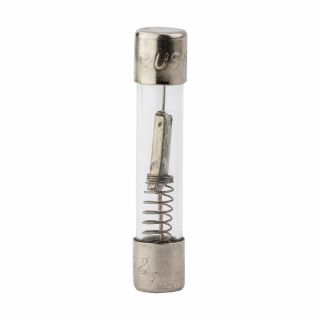

Picture of MDQ-2 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
MDQ-2
CBT Inventory
19
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
19
CBT - LEXINGTON
0
Availability:
Expected Leadtime 21 days
Estimated dates are contingent upon manufacturer stock.
$16.99 / EA

Description

Brand Name

Bussmann

Type

Electronic Small Dimension

Description

Bussmann Time Delay Fuse, Electronic Small Dimension, Series: MDQ, Non-Indicating, Non-Rejection, 2 A, 250 VAC, 100 A Interrupt, 60 min, 120 s Response, Ferrule Terminal, Clip/Holder Mount, Cylindrical Body Type, Dual Element, Glass, 1/4 in Dia x 1-1/4 in L Body Size

Application

Electronic Relay and Control Circuit Applications

Standards

Standard 248-14 | UL Listed | UL File No. E19180, Guide JDYX | CSA Certified | UL File No. 47233 | Class 1422-01

Features

  • Dual element design allows closer sizing to inductive circuits than any other fuses
  • 100 A at 250 VAC interrupt rating
  • 60 min maximum at 135%, 120 sec maximum at 200% response time

Specifications

Amperage Rating:2 A
Body Size:1/4 in Dia x 1-1/4 in L
Body Type:Cylindrical
Country of Origin:MX
Element:Dual
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:100 A
Material:Glass
Mounting Type:Clip/Holder
Rejection/Non-Rejection:Non-Rejection
Response Time:60 min, 120 s
Series:MDQ
Terminal Type:Ferrule
Voltage Rating:250 VAC

Resources
