MFC-32C SMT

Name: MFC-32C SMT
Brand: Regal Rexnord
SKU: MFC-32C SMT
Price: 520.80 USD
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

704145

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$520.80 / EA

Description

Brand Name

Sealmaster®

Type

Non-Expansion Medium Duty Round/Straight Bore

Description

Sealmaster® gold mounted ball bearings feature wide outer race insert bearing with a land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system. This provides a direct path for lubrication into the bearing. It also helps prevent outer ring rotation. Available with either setscrew or Skwezloc®concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex®HP grease loss and friction.

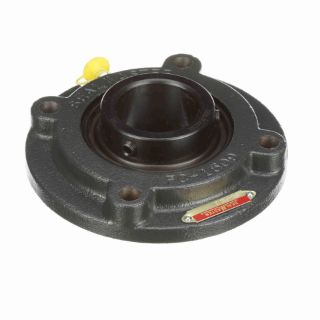

Sealmaster® Ball Bearing Cartridge Unit, Non-Expansion Medium Duty Round/Straight Bore, Series: MFC, 2 in Bore, 5-3/8 in Diameter Bolt Circle, 4-Bolt Piloted Flange Mounting, 6-3/8 in Overall Length/Diameter, 2-3/16 in Overall Depth, 6-3/8 in Overall Height, Set Screw Locking Device, 52100 Steel Bearing, Nitrile Rubber Seal, 9752 lb Dynamic/6601 lb Static Load, 3250 rpm Maximum, -20 to 220 deg F, Uncoated

Application

Aggregate, Cement, Forestry, HVAC, Metals, Minerals and Mining, Packaging Machinery and Unit Handling Industries

Standards

ABMA Standard

Features

Single lip contact seal consists of a nitrile rubber washer in metal shroud to shield the lip from large contaminants
Setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
Solid bases are standard on Sealmaster® Gold ball bearing pillow blocks
All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
Metal nameplate riveted to the housing allows for easy identification even after years of operation
+/- 2 deg static misalignment
Wide black oxided outer ring with direct lubrication inlet hole
Flange cartridge housing
GoldPlex® HP grease lubrication
Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120 deg spacing setscrew locking with diamond faceted setscrews
Single lip contact seal with black oxide bearing races
Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation

Specifications

Bearing Material:	52100 Steel
Bolt Circle Diameter:	5-3/8 in
Bore Diameter:	2 in
Country of Origin:	US
Finish:	Uncoated
Flange Mounting Type:	4-Bolt Piloted
Load Capacity:	9752 lb Dynamic/6601 lb Static
Locking Device:	Set Screw
Maximum Speed:	3250 rpm
Overall Depth:	2-3/16 in
Overall Height:	6-3/8 in
Overall Length/Diameter:	6-3/8 in
Seal Material:	Nitrile Rubber
Series:	MFC
Temperature Rating:	-20 to 220 deg F
