MFC-48C SMT

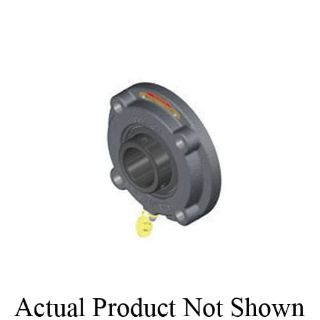

Picture of MFC-48C SMT
Actual Product May Vary From Image

Product Details

Manufacturer:
Regal Rexnord
Manufacturer part number:
704152
CBT Inventory
1
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
1
CBT - LOUISVILLE
0
Availability:
1 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,207.59 / EA

Description

Brand Name

Sealmaster®

Type

Medium Duty Non-Expansion Round Straight Bore

Description

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
Sealmaster® Flange Mount Ball Bearing Unit, Medium Duty Non-Expansion Round Straight Bore, Series: MFC, 3 in Bore, 7-1/2 in Diameter Bolt Circle, 4-Bolt Flange Mounting, 8-3/4 in Overall Length/Diameter, 2 in Overall Depth, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 17412 lb Dynamic Load, 1950 rpm Maximum, -20 to 250 deg F, Uncoated

Application

Aggregate, Cement, Forestry, HVAC, Metals, Minerals, Mining, Packaging Machinery and Unit Handling Industries

Features

  • Single lip contact seal consists of a nitrile rubber washer in metal shroud to shield the lip from large contaminants
  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Zone hardened inner ring with 120 deg spacing setscrew locking with diamond faceted setscrews
  • Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
  • Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation

Specifications

Bearing Material:Steel
Bolt Circle Diameter:7-1/2 in
Bore Diameter:3 in
Country of Origin:US
Finish:Uncoated
Flange Mounting Type:4-Bolt
Load Capacity:17412 lb Dynamic
Locking Device:Set Screw
Maximum Speed:1950 rpm
Overall Depth:2 in
Overall Length/Diameter:8-3/4 in
Seal Material:Nitrile Rubber
Series:MFC
Temperature Rating:-20 to 250 deg F
