Actual Product May Vary From Image

MIN-2MR-1 MEN

Name: MIN-2MR-1 MEN
Brand: Mencom Corporation
SKU: MIN-2MR-1 MEN
Price: 11.24 USD
Availability: OutOfStock

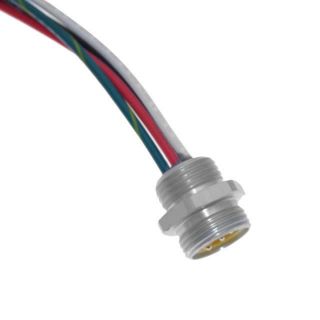

MIN Size I (7/8") Male Receptacle

Manufacturer: Mencom Corporation

Manufacturer part number: MIN-2MR-1

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$11.24

Qty:

Product Details

Type

Cables

Description

MIN size I (7/8") connectors provide easy plug and play connectivity for a wide range of applications that require 2-6 contacts. Mencom offers many combinations of molded cables, field wired connectors, and panel mount receptacles with choices of cable jackets and connector ends to meet your specific requirements.

Specifications

Amerage Rating:	13
Cable Jacket Material:	PVC
Cable Length (FT):	1
Cable Length (M):	0.3
Color Code:	North American
Component Type:	Receptacle
Coupling Thread Gender 1:	Male
Gender:	Male
Groundwire:	No
Ingress Protection:	IP67
Mating Thread Type Head 1:	7/8-16UN2
Mencom Series:	MIN Size I
Mounting Style:	Front Mount
Mounting Thread:	.5-NPT
Nut:	No
Orientation Head 1:	Male Straight
Pin Count:	2
Rated Block:	Receptacle
Shell Coupling Nut Mater:	Clear Anodized Aluminum
Termination:	Discrete
Voltage Rating:	600
Wire Gauge:	16
