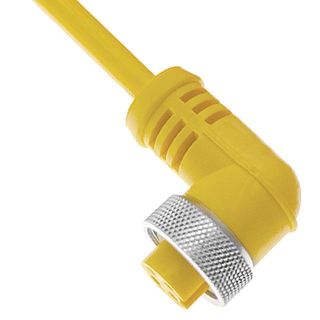

Actual Product May Vary From Image

MIN-5FP-12-R MEN

Name: MIN-5FP-12-R MEN
Brand: Mencom Corporation
SKU: MIN-5FP-12-R MEN
Price: 66.37 USD
Availability: InStock

MIN Size I (7/8") Female Cordset

Manufacturer: Mencom Corporation

Manufacturer part number: MIN-5FP-12-R

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
6	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$66.37

Qty:

Product Details

Type

Cables

Description

MIN size I (7/8") connectors provide easy plug and play connectivity for a wide range of applications that require 2-6 contacts. Mencom offers many combinations of molded cables, field wired connectors, and panel mount receptacles with choices of cable jackets and connector ends to meet your specific requirements.

Specifications

Amerage Rating:	8
Cable Jacket Material:	PVC
Cable Length (FT):	12
Cable Length (M):	4
Cable OD:	0.51
Color Code:	North American
Component Type:	Cordset
Coupling Thread Gender 1:	Female
Gender:	Female
Gland Lower Range:	0.51
Gland Upper Range:	0.51
Groundwire:	Yes
Home Run Pin Count:	5
Ingress Protection:	IP67
Jacket Color:	Yellow
Mating Thread Type Head 1:	7/8-16UN2
Mencom Series:	MIN Size I
Nut:	No
Orientation Head 1:	Female Right Angle
Pin Count:	5
Rated Block:	Single Ended Cordset
Shell Coupling Nut Mater:	Nickel Plated Brass
Voltage Rating:	600
Wire Gauge:	16
