MR 14 RSS MCG

Product Details

Manufacturer:
Manufacturer part number:
5451450000
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

McGill®

Type

Heavy Duty Standard

Description

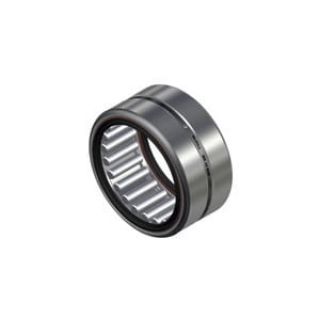

McGill® CAGEROL® machined race needle bearings are manufactured from bearing quality steel. Most sizes use crowned or end relieved, rollers to help reduce end stresses and allows for greater misalignment. The rollers are separated by a steel retainer (cage) to help achieve higher speeds and provide a lubricant reservoir. CAGEROL® bearings are constructed with radial lubrication hole and groove on the outer and optional inner raceway (MI series) for relubrication through the housing or shaft. Other options include a variety of seal configurations to either help prevent contaminant entry or contain the lubricant.
McGill® CAGEROL® Unmounted Needle Roller Bearing, Heavy Duty Standard, Series: MR Series, 7/8 in Bore, 1-3/8 in OD, 1 Rows, 1 in Width, Double Seal Closure, 5280 lb Dynamic/6000 lb Static Load, 52100 Steel Bearing, Rubber Seal, Steel Cage, 4400 rpm Maximum, -20 to 250 deg F

Application

Metals, Minerals and Mining, Packaging Machinery and Unit Handling Industries

Features

  • Machined outer race
  • Needle roller with end relief
  • Annular lubrication groove and holes
  • Factory grease fill
  • Double seal with both seal lips turned out

Specifications

Bearing Material:52100 Steel
Bore Diameter:7/8 in
Cage Material:Steel
Closure Type:Double Seal
Country of Origin:MX
Load Capacity:5280 lb Dynamic/6000 lb Static
Maximum Speed:4400 rpm
Number of Rows:1
Outside Diameter:1-3/8 in
Seal Material:Rubber
Series:MR Series
Temperature Rating:-20 to 250 deg F
Width:1 in
