MVI56E-MCM PRS

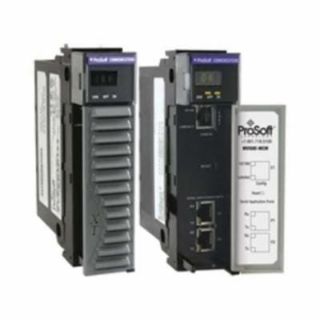

InRAx® MVI56E-MCM Enhanced Modbus Master/Slave Network Interface Communication Module, 5/24 VDC, 800/3 mA
Manufacturer: Prosoft Technology
Manufacturer part number: MVI56E-MCM
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$2,919.00

Product Details

Brand Name

InRAx®

Type

Enhanced Modbus Master/Slave Network Interface

Description

The MVI56E Communication Module allows for Modbus Master and/or Slave connectivity from Rockwell Automation® ControlLogix® processors to Modbus RTU/ASCII devices. Each MVI56E port can be configured as a Master or Slave. The MVI56E-MCM and MVI56E-MCMXT act as input/output modules on the ControlLogix backplane, making Modbus data appear as I/O data to the processor. Two independently configurable serial ports can operate on the same or different Modbus networks. The MVI56E-MCM is designed for standard process applications and the MVI56E-MCMXT is designed for the Logix-XT™ control platform, allowing it to operate in extreme environments. It can tolerate higher operating temperatures, and has conformal coating to protect it from harsh or caustic conditions.
InRAx® Communication Module, Enhanced Modbus Master/Slave Network Interface, 5/24 VDC, 800/3 mA, 32 to 140 deg F

Features

  • Backward compatibility - all MVI56E products are backward compatible with earlier MVI56 modules allowing direct replacement without the need to change existing controller programs
  • 10000 word database - allows you to gather more data from your devices, which improves operational performance, enjoy enhanced features and flexibility without incurring expensive reprogramming costs
  • Add-on instruction - module configuration stored within the RSLogix™ 5000 project (ACD file), no additional programming or configuration software is required and add-on instruction for RSLogix 5000 version 16 or higher cuts development time and costs
  • CIPconnect® enabled - facilitates remote user access across the ControlLogix™ backplane through Rockwell Automation™s 1756-ENBT module, Configure, diagnose, and analyze process data and communications status and bridge through multiple ENBT/CNBT links to connect to MVI56E-MCMs installed in remote chassis for configuration and diagnostics
  • Add-on profile - simplifies adding the module in an RSLogix 5000 project
  • Single-slot - 1756 ControlLogix™ backplane compatible
  • 10/100 MB ethernet port for network configuration and diagnostics with auto cable crossover detection
  • User-definable module data memory mapping of up-to 10000 16-bit registers
  • 4-character, scrolling, alphanumeric LED display of status and diagnostic data in plain English
  • Prosoft discovery service (PDS) software finds the module on the network and assigns a temporary IP address to facilitate module access
  • Supports RIUP (Remove and insert under Power)
  • 5 to 95% relative humidity
  • -40 to 185 deg F storage temperature
  • LED indicators - battery status, application status, module status
  • For CompactLogix

Includes

RJ45 to DB-9M Cables, 5 ft Gray Ethernet Straight-Thru Cable

Specifications

Amperage Rating:800/3 mA
Country of Origin:US
Temperature Rating:32 to 140 deg F
Voltage Rating:5/24 VDC
