OZGCH50 OZG

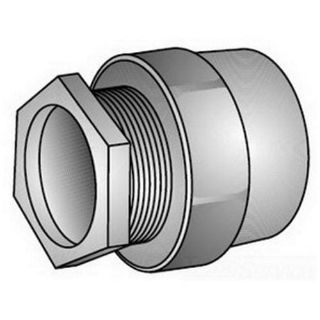

Picture of OZGCH50 OZG
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
CH-50
CBT Inventory
50
Vendor Inventory
Loading...
CBT - CINCINNATI
50
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
50 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$16.13 / EA

Description

Brand Name

O-Z/Gedney

Description

O-Z/Gedney space-maker conduit hubs can be used with RMC and IMC. Type CH are general purpose fittings suitable for use with heavy wall cabinets. Type CH-T are insulated throat form fittings with a bonding screw. They provide a more vibration resistant connection with assured ground continuity.
O-Z/Gedney Space-Maker Conduit Hub, Series: CH Series, 1/2 in Size, For Use With: IMC/Rigid Conduit, Malleable Iron, Zinc Plated Finish, 1-1/4 in Dia x 1-1/8 in L Dimensions

Application

For rigid conduit and IMC

Standards

ARRA Compliant | UL File Number E-11853 For Use In Wet Locations | CSA 009795 | UL 514B Listed | CSA C22.2 No 18 Certified | Federal Specification W-F-408E | NEMA FB-1, 4, 12 | UL Listed for Class I, Div 2, Class III, Div 1, 2 Per NEC 501-4(b), 501.10(b)(4), 502-4(a)(2), 503-3(a) Hazardous Locations

Features

  • Female bushed nipple type
  • Female thread for rigid conduit and IMC
  • Takes less space
  • Recessed O-ring seal outside the box provides a watertight threaded hub on enclosures

Specifications

Country of Origin:MX
Dimensions:1-1/4 in Dia x 1-1/8 in L
Finish:Zinc Plated
Material:Malleable Iron
Series:CH Series
Size:1/2 in
Suitable For Use With:IMC/Rigid Conduit
