P-R2-K3RF3 GEP

Name: P-R2-K3RF3 GEP
Brand: Grace Engineered Products
SKU: P-R2-K3RF3 GEP
Price: 238.00 USD
Availability: InStock

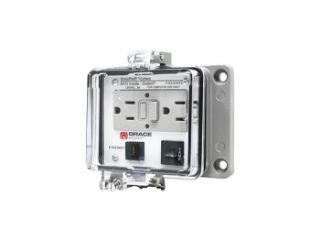

GracePorts® P-R2-K3RF3 Bulkhead Computer Port Connector Interface, Plastic Housing

Manufacturers: Grace Engineered Products , Grace Engineered Products , Grace Engineered Products

Manufacturer part number: P-R2-K3RF3

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$238.00

Qty:

Product Details

Brand Name

GracePorts®

Type

Bulkhead

Description

GracePorts® Computer Port Connector Interface, Bulkhead, Panel Mounting, 120 VAC, 30 VDC, Cat 5e Ethernet RJ45 F/F Connector, Plastic Housing Material, 5.08 in L x 1.65 in W x 3.54 in H Dimensions

Application

Outdoor Use

Standards

UL E207344 | CSA LR110845 | RU/RoHS Compliant

Features

Extension cable interfaces consist of fully shielded cable assemblies panel-mounted to the housing allowing a direct and cost effective method of interfacing to computers, printers, modems and networks
Bulkhead interface method permits standard cable connections on both the front and the rear of the graceport unit
Connections are made to and from the interface by way of user supplied computer cable assemblies, printed circuit assembly
Low-profile circuit board interfaces simplify installation where backplane clearance is limited
The compact design features a data connector on the front and terminal block connections on the rear for easy wiring
Low voltage (data), limited to 30 VDC, high voltage supply (for computer use only)
1 port
32 point, NEMA 12/4, IP65, cast alloy base enclosure
3 A 250 V circuit breaker
120 VAC GFCI inside-outlet

Specifications

Connector Type:	Cat 5e Ethernet RJ45 F/F
Country of Origin:	US
Dimensions:	5.08 in L x 1.65 in W x 3.54 in H
Housing Material:	Plastic
Mounting Type:	Panel
Voltage Rating:	120 VAC, 30 VDC
