P64-14MGT-40 GAT

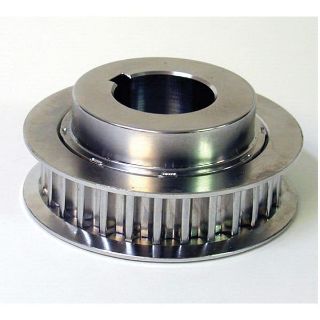

Picture of P64-14MGT-40 GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Corporation
Manufacturer part number:
P64-14MGT-40
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$571.02 / EA

Description

Brand Name

Gates®

Description

PowerGrip Sprockets and Pulleys provide optimum performance for all constructions of PowerGrip GT, PowerGrip HTD and PowerGrip Timing belts, delivering maximum performance and superior reliability. PowerGrip sprockets are precision manufactured and static balanced to eliminate sprocket wobble.
Gates® PowerGrip® GT®2 Synchronous Sprocket, Series: 7711, Taper-Lock® Bore, 7/8 to 3-1/4 in Bore Dia, 11.119 in Outside Dia, 11.229 in, 64 Grooves, 14 mm Pitch, 2.19 in Face Width, 11-3/4 in Flange Dia, 6-1/4 in Hub Dia, 3020 Bushing, For Use With: 40 mm W PowerGrip® GT®3 and PowerGrip® GT®2 Belts, Cast Iron

Features

  • Full split in bushing allows easy installation and removal
  • Precise sprocket design produces positive, press fit to shaft
  • Precision manufactured and static balanced
  • Smaller, narrower sprockets save shaft space, keep the load closer to bearing and extend life of reducer

Specifications

Bore Diameter:7/8 to 3-1/4 in
Bore Type:Taper-Lock®
Bushing Type:3020
Country of Origin:US
Face Width:2.19 in
Flange Diameter:11-3/4 in
Hub Diameter:6-1/4 in
Material:Cast Iron
Number of Grooves:64
Outside Diameter:11.119 in
Pitch:14 mm
Pitch Diameter:11.229 in
Series:7711
Suitable For Use With:40 mm W PowerGrip® GT®3 and PowerGrip® GT®2 Belts

Products Specifications

Brand Name
Gates
