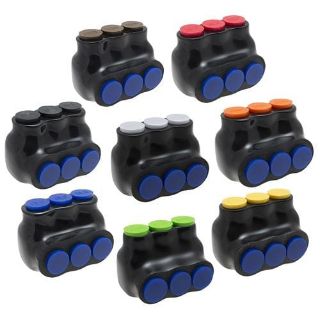

Actual Product May Vary From Image

PBTI-3-1/0-F-YEL ILS

Name: PBTI-3-1/0-F-YEL ILS
Brand: Ilsco Corporation
SKU: PBTI-3-1/0-F-YEL ILS
Price: 103.23 USD
Availability: OutOfStock

ILSCO® NIMBUS®4FLEX PBTI-3-1/0-F-YEL 3-Port Type PBTI Insulated Multi-Tap Connector, 14 to 1/0 AWG Aluminum/Flex Copper Conductor

Manufacturer: Ilsco Corporation

Manufacturer part number: PBTI-3-1/0-F-YEL

Availability: 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$103.23

Qty:

Product Details

Brand Name

ILSCO®

Type

3-Port Type PBTI

Description

ILSCO® NIMBUS®4FLEX Insulated Multi-Tap Connector, 3-Port Type PBTI, Aluminum/Flex Copper Conductor, 14 to 1/0 AWG Conductor, 600 VAC, 3/16 in Hex, -45 to 90 deg C, Yellow, 2.248 in L x 1.625 in W x 1.627 in H

Standards

UL 486A/B/453G File No. E6207 | CSA File No. LR29601 | NEC 310-316 | PROP65:Cancer and Reproductive Harm - www.P65warnings.ca.gov

Features

Reusable patented screw design improves vibration resistance, compresses conductor without damage, eliminates the need for ferrules
Cold temperature rated to -45 deg C for application variability
High dielectric strength plastisol is chemical resistant
Removable plugs protect wire way from contamination
Pre-filled with De-ox® oxide inhibiting compound prevents oxides from forming
Flexible NIMBUS® caps are reflex blue for easy identification in the field
Dual rated for copper, copper flex or aluminum conductor
Simplifies motor wire up

Specifications

Conductor Size:	14 to 1/0 AWG
Conductor Type:	Aluminum/Flex Copper
Country of Origin:	MX
Dimensions:	2.248 in L x 1.625 in W x 1.627 in H
Finish:	Yellow
Specifications:	3/16 in Hex
Temperature Rating:	-45 to 90 deg C
Voltage Rating:	600 VAC
