PDB321-3 BSF

Name: PDB321-3 BSF
Brand: Bussmann
SKU: PDB321-3 BSF
Price: 423.36 USD
Availability: InStock

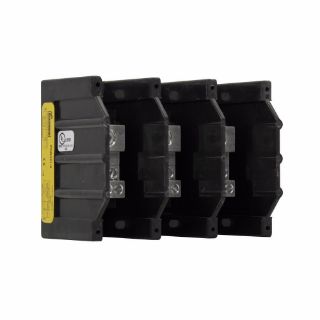

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

PDB321-3

CBT Inventory

Vendor Inventory

Availability:

1 in stock

Estimated dates are contingent upon manufacturer stock.

$423.36 / EA

Description

Brand Name

Bussmann

Type

Barrier

Description

Cooper Bussmann offers three distinctly different styles of short circuit current rated power distribution blocks (PDBs) and power terminal blocks (PTBs) to match different application needs. The differences are whether the power distribution blocks are enclosed or not, and whether they are UL 1953 Listed PDBs or UL 1059 Recognized PTBs, which have different minimum spacing requirements. The table on this page can assist in the selection of the right series for your application requirements.

Bussmann Power Distribution Block, Barrier High SCCR Open, Series: PDB, 600 VAC/VDC, 175 A, 3 Pole, 1 Primary Connections/Pole, 6 Secondary Connection/Pole, 8 to 2/0 AWG Wire, 200 kA Short Circuit Current Rating, Aluminum, Tin Plated, Black, 4 in L x 5.2 in W x 3.32 in H

Application

Electrical Assemblies, Panels and OEMs Applications

Standards

Features

High short circuit current ratings up to 200 kA
These PDBs do not have to be the weak link in achieving high SCCR for an industrial control panel
8 to 2/0 AWG line side, 14 to 4 AWG load side wire

Specifications

Amperage Rating:	175 A
Color:	Black
Country of Origin:	MX
Dimensions:	4 in L x 5.2 in W x 3.32 in H
Finish:	Tin Plated
Fuse Type:	Class CC
Material:	Aluminum
Number of Poles:	3
Primary Connections/Pole:	(1) Box Lug
Secondary Connection/Pole:	(6) Box Lug
Series:	PDB
Short Circuit Current Rating:	200 kA
Voltage Rating:	600 VAC/VDC
Wire Size:	8 to 2/0 AWG
