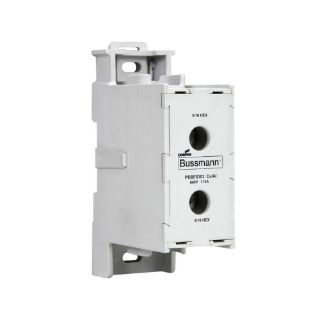

PDBFS303 BSF

Product Details

Manufacturer:
Manufacturer part number:
PDBFS303
CBT Inventory
2
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
2
CBT - LEXINGTON
0
Availability:
Expected Leadtime 14 days
Estimated dates are contingent upon manufacturer stock.
$179.74 / EA

Description

Brand Name

Bussmann

Type

Enclosed High SCCR

Description

EATON Bussmann series finger safe power distribution block (PDBFS) with short circuit current ratings (SCCRs) up to 200 kA help achieve compliance with NEC and OSHA requirements by resolving common SCCR weak links in industrial control panels.
Bussmann Power Distribution Block, Enclosed High SCCR, Series: PDBFS, 600 VAC/VDC, 310 A, 1 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 6 AWG to 350 kcmil Wire, 200 kA Short Circuit Current Rating, Aluminum, Tin Plated, 4.665 in L x 1.55 in W x 2.874 in H

Application

Electrical Assemblies, Panels and EOEMs Applications

Standards

CE Certified | CSA Certified | IEC 60529/60947-7-1 | RoHS Compliant | UL 1953 | UL File No. E256146/6228-01/File No. 47235 | UL Guide QPQS

Features

  • 6 AWG to 350 kcmil line/load side wire
  • Meets wireway application requirements
  • Dual wire rated ports and the ability to use UL listed ferrules greatly expand application flexibility
  • DIN rail and panel mount versatility allows one product to be used for multiple applications without incurring additional inventory cost
  • IP20 finger safe

Specifications

Amperage Rating:310 A
Country of Origin:MX
Dimensions:4.66 in L x 1.54 in W x 2.87 in H
Finish:Tin Plated
Material:Aluminum
Number of Poles:1
Primary Connections/Pole:1
Secondary Connection/Pole:1
Series:PDBFS
Short Circuit Current Rating:200 kA
Voltage Rating:600 VAC/VDC
Wire Size:6 AWG to 350 kcmil
