PLX31-EIP-PND PRS

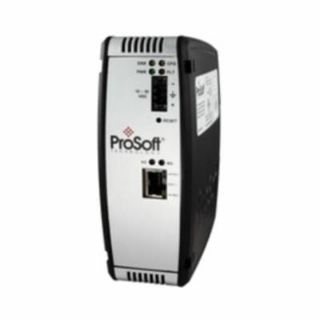

Picture of PLX31-EIP-PND PRS
Actual Product May Vary From Image

Product Details

Manufacturer:
Prosoft Technology
Manufacturer part number:
PLX31-EIP-PND
CBT Inventory
1
Vendor Inventory
Loading...
CBT - CINCINNATI
1
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$969.00 / EA

Description

Brand Name

ProSoft Technology

Description

The EtherNet/IP™ to PROFINET® I/O device (slave) gateway offers bi-directional data transfers between EtherNet/IP™ controllers and a PROFINET® IO controller. The EtherNet/IP™ driver supports I/O connections for guaranteed data delivery or message instructions to send data to/from the PACs. The gateway supports 1440 bytes of input data and 1440 bytes of output data for larger applications. In addition, the gateway's multiple I/O connections, allow you to set different RPIs for control data and module diagnostics, enabling you to optimize your EtherNet bandwidth.
ProSoft Technology EtherNet/IP to Profinet IO Device Gateway, 50/60 Hz, 5.38 in H x 1.99 in W x 4.38 in D, Environmental Conditions: 5 to 95% Humidity

Standards

ATEX | CE/EMC | CB Safety | UL Listed | Korea-KCC

Features

  • 10 to 36 VDC allowed positive, negative, GND terminals power supply
  • -25 to 70 deg F operating temperature
  • Configuration (CFG), error (ERR), power (PWR), hardware fault (FLT), network status (NS), EtherNet/IP class I or class III connection status (EtherNet/IP only) module status (MS), module configuration status (EtherNet/IP only) EtherNet communication port link/activity, and 100 mb LED indicators
  • Embedded EDS add on profile allows for simplified integration and reduced configuration time for Rockwell Automation PACs
  • 10/100 base-T half duplex RJ45 connector electrical isolation 1500 Vrms at 50 Hz to 60 Hz for 60 sec EtherNet port
  • EtherNet broadcast storm resiliency is equal to less than or equal to 5000 [ARP] frames/sec and less than or equal to 5 min duration
  • 10/100 Mb EtherNet port with auto cable crossover detection
  • No ladder programming is required when using I/O connections
  • Multiple I/O connections allow you to set different RPIs for status and control data, enabling EtherNet bandwidth optimization
  • PLC2, PLC5, SLC, CLX, CMPLX supported PLC types

Specifications

Dimensions:5.38 in H x 1.99 in W x 4.38 in D
Environmental Conditions:5 to 95% Humidity
Frequency Rating:50/60 Hz
