PM1-3F-C PAN

Name: PM1-3F-C PAN
Brand: Panduit
SKU: PM1-3F-C PAN
Price: 0.62 USD
Availability: OutOfStock

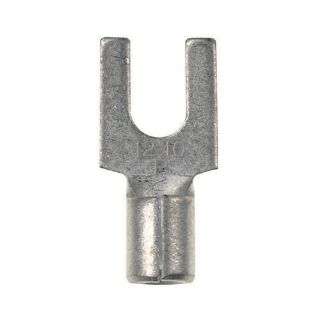

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

PM1-3F-C

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$0.62 / EA

Description

Brand Name

Panduit®

Type

Loose Piece Metric Non-Insulated

Alternate Supplier #

Grainger - 62PM02
Fastenal - 0728390

Description

Panduit® Pan-Term™ Fork Terminal, Type PM-F Loose Piece Metric Non-Insulated, Stranded Copper Conductor, 16 AWG Conductor, M3 Stud, 0.63 in Length, Brazed Seam/Standard Barrel, 1.6 in ID Barrel, Standard Fork Tongue, 0.23 in W x 0.03 in THK Tongue, 2000 VAC, Specifications: 9/32 in L Wire Strip, 0.22 in Clearance, Standard Barrel Configuration, 0.28 in Mounting Hole, 302 deg F, Copper, Tin Plated, Metallic

Standards

ARRA Compliant | BAA Compliant | RoHS Compliant | UL 587H/E52164 | Buy American Act Compliant

Features

Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
Snap-in place for secure connection
Fork design provides for fast and easy installation, without the need to remove fastener
Insulation support helps to prevent wire damage in bending applications

Specifications

Barrel Size:	1.6 in ID
Barrel Type:	Beveled Edge/Brazed Seam/Serrated/Standard
Color:	Metallic
Conductor Size:	0.5 to 1.5 sq-mm
Conductor Type:	Stranded Copper
Country of Origin:	MX
Dimensions:	0.63 in L x 0.23 in W
Finish:	Tin Plated
Length:	0.63 in
Material:	Copper
Series:	PM-F
Specifications:	7.1 mm L Wire Strip, 5.59 mm Clearance
Stud Size:	M3
Temperature Rating:	302 deg F
Tongue Size:	0.23 in W x 0.03 in THK
Tongue Type:	Standard Fork
Voltage Rating:	2000 VAC
