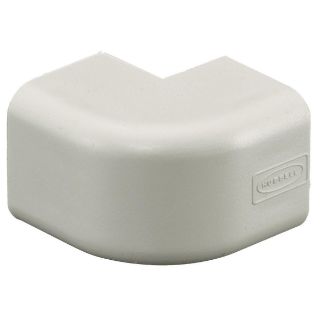

Actual Product May Vary From Image

PT1EE HWD

Name: PT1EE HWD
Brand: Hubbell Wiring Device-Kellems
SKU: PT1EE HWD
Price: 2.55 USD
Availability: InStock

Wiring Device-Kellems PremiseTrak® PT1EE External Extruded Latching Non-Metallic Non-Latching Standard Raceway Elbow, PVC

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: PT1EE

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	8
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2.55

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

External Extruded Latching Non-Metallic Non-Latching Standard

Description

POLYTRAK® non-metallic surface raceway is a complete system that includes raceway, fittings, boxes and devices. Sizes range from single channel PremiseTrak® to three channel. Super BaseTrak® for all types of surface raceway requirements. Single and two channel latching raceways are dual-rated for both power and data applications, reducing inventory requirements.

Wiring Device-Kellems PremiseTrak® Raceway Elbow, External Extruded Latching Non-Metallic Non-Latching Standard, For Use With: PremiseTrak® PT1 Series 2-Piece Non-Metallic Single Channel Surface Raceway, PVC, Off-White, 1.2 in L x 1.2 in W x 0.8 in H Dimensions

Application

Non-Hazardous Locations

Standards

ANSI/EIA/TIA-569A | UL 5A File No. E118895/E119190 | CSA C22.2 No. 62 File No. LR87514

Features

Extruded construction
0.28 sq-in nominal cross section
Boxes have three cut-always that can be utilized with WallTrak®, LanTrak® and PremiseTrak® (latching) systems
Eliminates need to order three separate boxes and reducing inventory requirements
Boxes utilize Hubbell® KP plates or iSTATION™ modules and bezels
Full capacity In-Line® boxes eliminate the need to de-rate the wire fill capacity due to the intrusion of devices into the raceway channel
5 ft-lb impact resistance
300 lb crush resistance
-25.6 to 158 deg F temperature
2-gang divided box available for power, data, voice, audio and video applications

Specifications

Color:	Off-White
Country of Origin:	US
Dimensions:	1.2 in L x 1.2 in W x 0.8 in H
Material:	PVC
Suitable For Use With:	PremiseTrak® PT1 Series 2-Piece Non-Metallic Non-Latching Single Channel Surface Raceway
