PV10-14F-L PAN

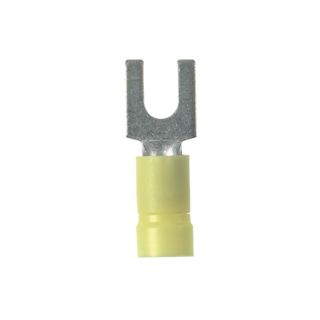

Picture of PV10-14F-L PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
PV10-14F-L
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1.41 / EA

Description

Brand Name

Panduit®

Type

Loose Piece

Alternate Supplier #

Grainger - 39AZ92
Fastenal - 0711127

Description

Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
Panduit® Pan-Term® Fork Terminal, Loose Piece, Series: PV-F, Copper Stranded Conductor, #10 Conductor, 1/4 in Stud, 1.14 in Length, Brazed Seam/Funnel Entry Barrel, Fork Tongue, 0.49 in W x 0.04 in THK Tongue, 600 V, Specifications: 5/16 in L Wire Strip, 0.225 in Dia Vinyl Insulation, 0.32 in Clearance, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | CSA C22.2 No. 65 | RoHS Compliant | UL 486A | UL 486B/587H File No. E52164/LR312120 | UL 94 V-0 Flammability Rated

Features

  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Locks in place for secure connection
  • Flange design provides extra secure connection on a variety of applications

Specifications

Barrel Type:Brazed Seam/Funnel Entry
Color:Yellow
Conductor Size:#10
Conductor Type:Copper Stranded
Country of Origin:MX
Dimensions:1.14 in L x 0.49 in W
Finish:Tin Plated
Length:1.14 in
Material:Copper
Series:PV-F
Specifications:5/16 in L Wire Strip, 0.225 in Dia Vinyl Insulation, 0.32 in Clearance, Fork Shape Enclosure
Stud Size:1/4 in
Temperature Rating:221 deg F
Tongue Size:0.49 in W x 0.04 in THK
Tongue Type:Fork
Voltage Rating:600 V
