PV14-6R-C PAN

Product Details

Manufacturer:
Manufacturer part number:
PV14-6R-C
CBT Inventory
100
Vendor Inventory
Loading...
CBT - Cincinnati
100
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
100 in stock
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Panduit®

Type

Type PV-R

Alternate Supplier #

Grainger - 39CA23
Fastenal - 0711138

Description

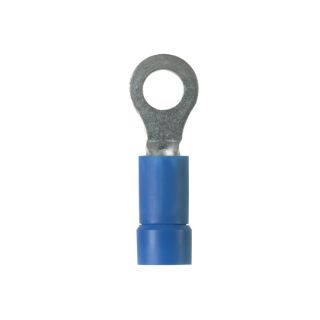

Panduit® Pan-Term™ Ring Terminal, Type PV-R Loose Piece, Solid/Stranded Conductor, 14 AWG Conductor, #6 Stud, 0.92 in Length, Brazed Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.17 in Dia Vinyl Insulation, 5/16 in Mounting Hole Size, 1/4 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue

Application

High Vibration Applications

Standards

ARRA Compliant | Buy American Act Compliant | Buy American Act Compliant | CSA C22.2 File No. 65/LR31212 | RoHS Compliant | UL 486A/486B/587H File No. E52164 | UL94 V-0 Flammability Rated

Features

  • Ring tongue design assures a secure connection in high vibration applications
  • Insulation support helps to prevent wire damage in bending applications
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Brazed seam protects terminal barrel from splitting during the crimp process

Specifications

Barrel Type:Brazed Seam/Funnel Entry/Insulation Support
Color:Blue
Conductor Size:14 AWG
Conductor Type:Solid/Stranded
Country of Origin:MX
Dimensions:0.92 in L x 0.31 in W
Finish:Tin Plated
Length:0.92 in
Material:Copper
Specifications:0.17 in Dia Vinyl Insulation, 5/16 in Mounting Hole Size, 1/4 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure
Stud Size:#6
Temperature Rating:221 deg F
Tongue Size:0.31 in W x 0.03 in THK
Tongue Type:Ring
Voltage Rating:600 V
