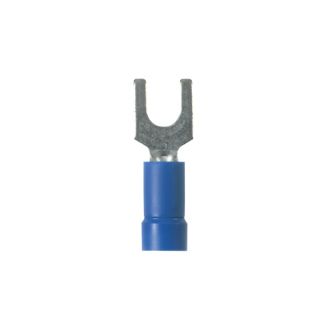

Picture of PV14-8F-C PAN
Actual Product May Vary From Image

PV14-8F-C PAN

Panduit® Pan-Term® PV14-8F-C Type PV-F Loose Piece Fork Terminal, 16 to 14 AWG Conductor, 0.9 in L, Brazed Seam/Funnel Entry/Internal Serration Barrel, Copper, Blue
Manufacturer: Panduit
Manufacturer part number: PV14-8F-C
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
200 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$0.83

Product Details

Brand Name

Panduit®

Type

Type PV-F Loose Piece

Alternate Supplier #

Fastenal - 0711139

Description

Panduit® Pan-Term® Fork Terminal, Type PV-F Loose Piece, Stranded Copper Conductor, 16 to 14 AWG Conductor, #8 Stud, 0.9 in Length, Brazed Seam/Funnel Entry/Internal Serration Barrel, Fork Tongue, 0.31 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.17 in Dia Vinyl Insulation, 0.23 in Clearance, 5/16 in Mounting Hole Size, 7/32 in L Wire Strip, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | Buy American Act Compliant | CSA C22.2 File No. 65/LR31212 | RoHS Compliant | UL 486A/486B | UL 587H File No. E52164 | UL HB Flammability Rated | UL94 V-2 Flammability Rated

Features

  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Barrel of terminal internally beveled to provide quick and easy wire insertion
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:Brazed Seam/Funnel Entry
Color:Blue
Conductor Size:16 to 14 AWG
Conductor Type:Stranded Copper
Country of Origin:MX
Dimensions:0.9 in L x 0.31 in W
Finish:Tin Plated
Length:0.9 in
Material:Copper
Specifications:0.17 in Dia Vinyl Insulation, 0.23 in Clearance, 5/16 in Mounting Hole Size, 7/32 in L Wire Strip, Fork Shape Enclosure
Stud Size:#8
Temperature Rating:221 deg F
Tongue Size:0.31 in W x 0.03 in THK
Tongue Type:Fork
Voltage Rating:600 V
