PV14-8R-C PAN

Name: PV14-8R-C PAN
Brand: Panduit
SKU: PV14-8R-C PAN
Price: 0.86 USD
Availability: InStock

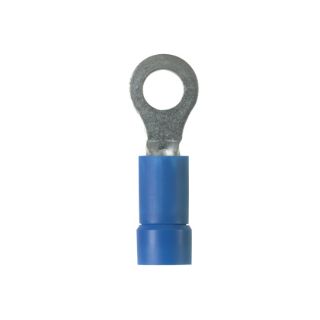

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

PV14-8R-C

CBT Inventory

100

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$0.86 / EA

Description

Brand Name

Panduit®

Type

Type PV-R

Alternate Supplier #

Grainger - 39CA27
Fastenal - 0711141

Description

Panduit® Pan-Term™ Ring Terminal, Type PV-R, Solid/Stranded Conductor, 16 to 14 AWG Conductor, #8 Stud, 0.92 in Length, Brazed Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 0.17 in Dia Vinyl Insulation, 5/16 in Mounting Hole Size, 1/4 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue

Application

High Vibration Applications

Standards

Features

Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
Fork design provides for fast and easy installation, without the need to remove fastener
Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:	Brazed Seam/Funnel Entry/Insulation Support
Color:	Blue
Conductor Size:	16 to 14 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Dimensions:	0.92 in L x 0.31 in W
Finish:	Tin Plated
Length:	0.92 in
Material:	Copper
Specifications:	0.17 in Dia Vinyl Insulation, 5/16 in Mounting Hole Size, 1/4 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure
Stud Size:	#6
Temperature Rating:	221 deg F
Tongue Size:	0.31 in W x 0.03 in THK
Tongue Type:	Ring
Voltage Rating:	600 VAC
