Q1 1 7/16 MSG

Name: Q1 1 7/16 MSG
Brand: Martin Sprocket & Gear
SKU: Q1 1 7/16 MSG
Price: 61.46 USD
Availability: InStock

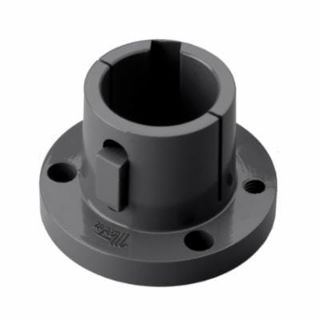

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

Q1 1 7/16

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$61.46 / EA

Description

Brand Name

Martin

Type

Standard

Description

MST® bushings are easy to install and remove. They are split through the barrel and have a taper to provide a true clamp on the shaft. They are keyed to both the shaft and the hub to help during "blind" installations.

Martin MST Bushing, Standard, 1-7/16 in Bore Dia, 2.7657 in Small End/2.875 in Large End Barrel Dia, 4-1/2 in Hub Dia, 3-3/8 in Bolt Circle, 4-1/8 in Flange Dia, 0.53 in Flange Thickness, 3 Bolt Holes, 3/8-16 x 1-1/4 in Screw, For Use With: MST® Sprockets and HQ1/HCQ1 Weld-On Hubs, 2-1/2 in Overall Length, 3/8 x 3/16 in Keyway, Steel

Standards

ANSI B15.1

Features

Size 1/Q1 bushing
Tolerances meet or exceed industry standards
Precise machining and processes ensure consistent finish and high quality
Interchangeable with other manufacturersâ€™ split-taper bushings

Specifications

Barrel Diameter:	2.7657 in Small End/2.875 in Large End
Bolt Circle Diameter:	3-3/8 in
Bore Diameter:	1-7/16 in
Country of Origin:	US
Flange Diameter:	4-1/8 in
Flange Thickness:	0.53 in
Hub Diameter:	4-1/2 in
Keyway Size:	3/8 x 3/16 in
Material:	Steel
Number of Bolt Holes:	3
Overall Length:	2-1/2 in
Screw Size:	3/8-16 x 1-1/4 in
Suitable For Use With:	MST® Sprockets and HQ1/HCQ1 Weld-On Hubs
