R20 2RS AD

Name: R20 2RS AD
Brand: IDC-USA
SKU: R20 2RS AD
Price: 11.24 USD
Availability: InStock

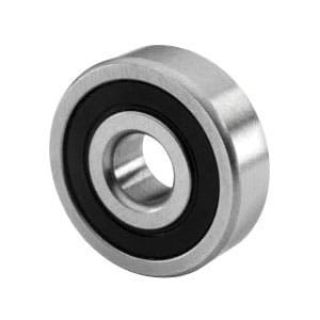

Actual Product May Vary From Image

Product Details

Manufacturer:

IDC-USA

Manufacturer part number:

IDC R20 2RS

CBT Inventory

Vendor Inventory

Availability:

6 in stock

Estimated dates are contingent upon manufacturer stock.

$11.24 / EA

Description

Brand Name

IDC Select®

Type

Miniature

Description

Deep groove ball bearings incorporate grooved raceways on both the inner ring and outer ring, which enable them to sustain moderate axial loads in both directions in addition to radial loads. Balls are separated by steel cages, permitting high-speed operation.

IDC Select® Deep Groove Ball Bearing, Miniature, Series: R Series, 1-1/4 in Bore, 2-1/4 in OD, 1 Rows, 1/2 in Width, Double Seal Closure, 3150 lb Load, SAE-52100 Chromium Steel Bearing, Rubber Seal, Steel Cage, 11000 rpm Grease/13000 rpm Oil Maximum, 250 deg F

Standards

ANSI/ABMA ABEC 1 | CSA Approved

Features

Mobil Polyrex™ EM lubricant
C3 radial internal clearance
Sealed bearings feature contact lip seals that provide excellent protection from liquids and contamination
3150 lb dynamic/2090 lb static load capacity

Specifications

Bearing Material:	SAE-52100 Chromium Steel
Bore Diameter:	1-1/4 in
Cage Material:	Steel
Closure Type:	Double Seal
Load Capacity:	3150 lb
Maximum Speed:	11000 rpm Grease/13000 rpm Oil
Number of Rows:	1
Outside Diameter:	2-1/4 in
Seal Material:	Rubber
Series:	R Series
Temperature Rating:	250 deg F
Width:	1/2 in
