RFP 115C SMT

Sealmaster® RPB mounted tapered roller bearings are a dimensionally interchangeable upgrade from competitive Type E bearings. The exclusive features include unitized replaceable inserts, self aligning capability, split housing and the Sealmaster® alignment pin which provides for a direct path for lubrication into the bearing and helps prevent outer ring rotation. The Sealmaster® RPB is available with two traditional setscrew locking collars for easy installation. The felt seal with flinger provides a good balance between contaminant entry, grease retention and friction. Depending on application requirements, these bearings are available in both inch and metric with a wide variety of housing, sealing and lubrication options.

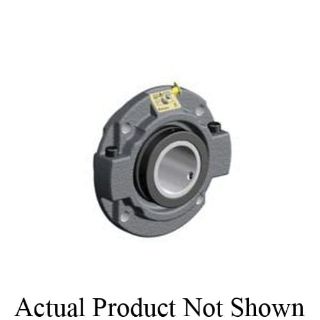

Sealmaster® Tapered Roller Bearing unit, Non-Expansion Round/Straight Bore, Series: RFP, 1-15/16 in Bore, 5-3/8 in Diameter Bolt Circle, 4-Bolt Piloted Flange Mounting, 6-3/8 in Overall Length/Diameter, 3-1/2 in Overall Depth, Double Set Screw Collar Locking Device, Cast Iron Bearing, Steel/Elastomer Seal, 8070 lb Dynamic Load, 2500 rpm Maximum, -20 to 220 deg F, Uncoated
