RM25100-1CR BSF

Name: RM25100-1CR BSF
Brand: Bussmann
SKU: RM25100-1CR BSF
Price: 173.37 USD
Availability: InStock

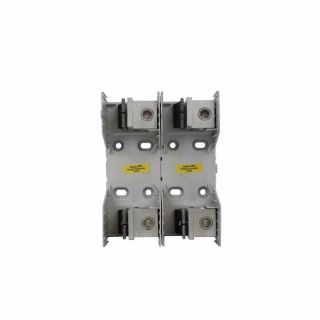

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

RM25100-1CR

CBT Inventory

Vendor Inventory

Availability:

2 in stock

Estimated dates are contingent upon manufacturer stock.

$173.37 / EA

Description

Brand Name

Bussmann

Type

Modular

Description

Bussmann Fuse Block, Modular, Series: RM Series, 250 V, 70 to 100 A, 1 Pole, Class: R, Knife Blade End, 1/0 to 3 AWG, (2) 4 to 6 AWG copper, 4 to 6 AWG, (2) 8 AWG Cu, 8 AWG, (2) 10 to 14 AWG Cu, 10 to 14 AWG Cu, 10 to 12 AWG Al Solid/Stranded Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 6 in L x 2 in W x 2.8 in H

Application

Electrical Assemblies, Panels and EOEMs Applications

Standards

Features

Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
Up to four mounting holes per pole increase installation flexibility
Standard phase barriers between poles for additional safety
Design meets UL creep and clearance requirements for industrial power circuits
200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards
Standard fuse clip reinforcing springs enhance electrical contact

Specifications

Amperage Rating:	70 to 100 A
Class:	R
Connection Type:	Knife Blade End
Country of Origin:	MX
Dimensions:	6 in L x 2 in W x 2.8 in H
Fuse Diameter:	1.06/1.16 in
Fuse Holder Code:	L
Fuse Length:	5.88 in
Material:	Thermoplastic
Mounting Type:	Hole
Number of Poles:	1
Series:	RM Series
Suitable For Use With:	Knife Blade Cartridge Fuse
Temperature Rating:	-40 to 120 deg C
Voltage Rating:	250 V
Wire Size:	1/0 to 3 AWG, (2) 4 to 6 AWG copper, 4 to 6 AWG, (2) 8 AWG Cu, 8 AWG, (2) 10 to 14 AWG Cu, 10 to 14 AWG Cu, 10 to 12 AWG Al Solid/Stranded
