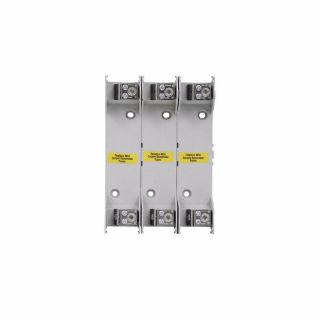

Actual Product May Vary From Image

RM60100-3CR BSF

Name: RM60100-3CR BSF
Brand: Bussmann
SKU: RM60100-3CR BSF
Price: 457.42 USD
Availability: InStock

Bussmann RM60100-3CR Modular Fuse Block, 600 V, 70 to 100 A, Class: R, 1/0 to 3 AWG, (2) 4 to 6 AWG copper, 4 to 6 AWG, (2) 8 AWG Cu, 8 AWG, (2) 10 to 14 AWG Cu, 10 to 14 AWG Cu, 10 to 12 AWG Al Solid/Stranded Wire, 3 Poles

Manufacturer: Bussmann

Manufacturer part number: RM60100-3CR

Availability: Expected Leadtime 14 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	2
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$457.42

Qty:

Product Details

Brand Name

Bussmann

Type

Modular

Description

Bussmann Fuse Block, Modular, Series: RM Series, 600 V, 70 to 100 A, 3 Pole, Class: R, Knife Blade End, 1/0 to 3 AWG, (2) 4 to 6 AWG copper, 4 to 6 AWG, (2) 8 AWG Cu, 8 AWG, (2) 10 to 14 AWG Cu, 10 to 14 AWG Cu, 10 to 12 AWG Al Solid/Stranded Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 6 in L x 6 in W x 2.8 in H

Application

Electrical Assemblies, Panels and EOEMs Applications

Standards

CSA Certified | cULus File No.E14853 | RoHS Compliant | UL 94-V-0 Flammability Rating

Features

Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
Up to four mounting holes per pole increase installation flexibility
Standard phase barriers between poles for additional safety
Design meets UL creep and clearance requirements for industrial power circuits
200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards
Standard fuse clip reinforcing springs enhance electrical contact

Specifications

Amperage Rating:	70 to 100 A
Class:	R
Connection Type:	Knife Blade End
Country of Origin:	MX
Dimensions:	6 in L x 6 in W x 2.8 in H
Fuse Diameter:	1.34/1.16 in
Fuse Holder Code:	R
Fuse Length:	7.88 in
Material:	Thermoplastic
Mounting Type:	Hole
Number of Poles:	3
Series:	RM Series
Suitable For Use With:	Knife Blade Cartridge Fuse
Temperature Rating:	-40 to 120 deg C
Voltage Rating:	600 VAC
Wire Size:	1/0 to 3 AWG, (2) 4 to 6 AWG copper, 4 to 6 AWG, (2) 8 AWG Cu, 8 AWG, (2) 10 to 14 AWG Cu, 10 to 14 AWG Cu, 10 to 12 AWG Al Solid/Stranded
