RNA4830-XL INA

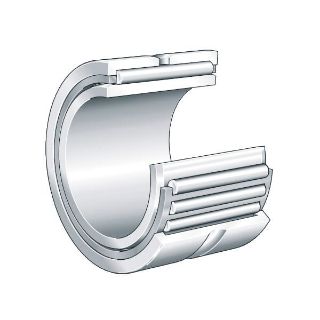

Picture of RNA4830-XL INA
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
RNA4830-XL
CBT Inventory
2
Vendor Inventory
Loading...
CBT - CINCINNATI
2
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
2 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$998.90 / EA

Description

Brand Name

INA

Description

Needle roller bearings are rolling bearings with a low radial section height and high load carrying capacity, which are used as non-locating bearings and are part of the group of radial needle roller bearings. These bearings comprise machined outer rings, needle roller and cage assemblies and removable inner rings, i.e. they can be supplied with or without an inner ring in accordance with the application. In contrast to the outer cups of drawn cup needle roller bearings, which are produced by forming methods, the bearing rings are machined. Due to their non-locating bearing function, the bearings cannot guide the shaft axially in any direction.
INA Needle Roller Bearing, Series: RNA48, 165 mm Bore, 190 mm OD, 1 Rows, 40 mm Width, Open Closure, 400000 N Load, Sheet Steel Cage, 2850 rpm Maximum, -30 to 120 deg C

Application

Printing Machinery, Food and Packaging Industry, Compressors, Fluid and Hydraulic Pumps, Automotive Chassis, Gearboxes for Industrial, Rail and Wind Turbine, Agricultural Vehicles and Equipment

Features

  • The bearings can support high to very high radial forces
  • Can only support radial loads and, as a result, are highly suitable for use as non-locating bearings (they permit axial displacement of the shaft relative to the housing in the bearing)
  • Permit high speeds in spite of line contact
  • Compensate misalignments between the shaft and housing
  • Require only a very small radial design envelope, particularly if the bearing arrangement is designed without an inner ring
  • Result in particularly compact, cost-effective and economical bearing arrangements
  • Without inner ring
  • X-life design
  • 172000 N dynamic/400000 N static

Specifications

Bore Diameter:165 mm
Cage Material:Sheet Steel
Closure Type:Open
Country of Origin:DE
Load Capacity:400000 N
Maximum Speed:2850 rpm
Number of Rows:1
Outside Diameter:190 mm
Series:RNA48
Temperature Rating:-30 to 120 deg C
Width:40 mm
