S20-8 MSG

Name: S20-8 MSG
Brand: Martin Sprocket & Gear
SKU: S20-8 MSG
Price: 84.34 USD
Availability: OutOfStock

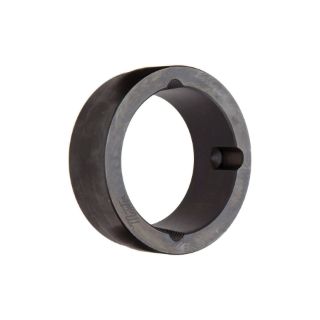

Martin S20-8 TB Bushed Type S Weld-On Hub, 2-3/4 in Bore, 3.562 in OD, 2-5/8 in Bolt Circle Diameter, 1-1/4 in OAL, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: S20-8

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$84.34

Qty:

Product Details

Brand Name

Martin

Type

TB Bushed Type S

Description

Taper bushed type S weld-on hubs are suitable for use in many applications such as for welding to plate steel sprockets. The outside diameters of these hubs have been reduced to a minimum. This is permissible because of the reinforcing strength of the items to which they are to be welded. Type S weld-on hubs are made of steel, drilled, tapped and taper bored for tapered bushings. Their small size and the convenience and advantages of taper bushed construction make them of great value on many devices for use on shafts.

Martin Weld-On Hub, TB Bushed Type S, 2-3/4 in Bore Dia, 3.562 in Outside Dia, 3.438 in Pilot Dia, 2-5/8 in Bolt Circle Dia, 2 Bolt Holes, 1-1/4 in Overall Length, Steel

Application

For welding to plate steel sprockets

Features

For use with type 2012 bushing
Used to adapt components for taper bushings
Precise machining and processes ensure consistent finish and high quality

Specifications

Bolt Circle Diameter:	2-5/8 in
Bore Diameter:	2-3/4 in
Country of Origin:	US
Material:	Steel
Number of Bolt Holes:	2
Outside Diameter:	3.562 in
Overall Length:	1-1/4 in
Pilot Diameter:	3.438 in
