Home / SB22206SSC3W33 BLT

SB22206SSC3W33 BLT

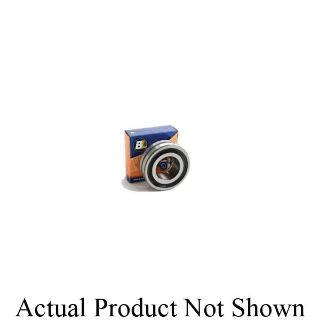

Picture of SB22206SSC3W33 BLT
Actual Product May Vary From Image

Product Details

Manufacturer:
Bearings Limited
Manufacturer part number:
SB22206/C3W33SS
CBT Inventory
48
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
48
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
48 in stock
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

TRITAN®

Type

Straight Bore

Description

TRITAN® Spherical Roller Bearing, Straight Bore, Series: SB 22200, 30 mm Bore, 62 mm OD, 1 Row, 20 mm Width, Sealed Closure, 11555 lb Load, Steel Bearing, 7695 rpm Grease Maximum, -20 to 212 deg F

Standards

AISI/SAE 52100

Features

  • Single row design offering increased load capacity
  • Sealed to keep contamination out and lubricant in
  • Dimensionally interchangeable with double row unsealed designs
  • W33 oil hole and groove in OD
  • 11555 lb dynamic/10970 lb static load

Specifications

Bearing Material:Steel
Bore Diameter:30 mm
Closure Type:Sealed
Load Capacity:11555 lb
Maximum Speed:7695 rpm Grease
Number of Rows:1
Outside Diameter:62 mm
Series:SB 22200
Temperature Rating:-20 to 212 deg F
Width:20 mm
