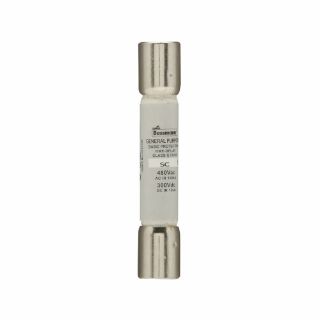

Actual Product May Vary From Image

SC-40 BSF

Name: SC-40 BSF
Brand: Bussmann
SKU: SC-40 BSF
Price: 61.27 USD
Availability: InStock

Bussmann SC-40 Current Limiting Low Voltage Time Delay Fuse, 40 A, 480 VAC, 100000 A/10000 A DC Interrupt, G Class, Cartridge Body

Manufacturer: Bussmann

Manufacturer part number: SC-40

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	7
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$61.27

Qty:

Product Details

Brand Name

Bussmann

Type

Current Limiting Low Voltage

Alternate Supplier #

Grainger - 1DH43

Description

Bussmann's SC type fuses are UL Class G and provide fast-acting (1/2-6 A) and time-delay (7-60 A) characteristics for circuit protection need. SC fuses are size rejecting in terms of their overall length thereby aiding in the prevention of overfusing

Bussmann Time Delay Fuse, Current Limiting Low Voltage, Series: SC Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 40 A, 480 VAC, 100000 A/10000 A DC Interrupt, Class: G, 12 s Response, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 0.41 in Dia x 2.25 in L Body Size

Application

Fusible Branch Panelboard and HVAC Branch Circuit Protection, Safety and Security Systems

Standards

Features

Current limiting for component protection, providing class G energy limitation for branch circuit protection
100 kA interrupt rating provides cost effective branch circuit fusing
Variations in length help prevent over fusing
12 s minimum at 200% of ampere rating response time

Specifications

Amperage Rating:	40 A
Body Size:	0.41 in Dia x 2.25 in L
Body Type:	Cartridge
Class:	G
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100/10 kAIC
Material:	Melamine
Mounting Type:	Holder
Rejection/Non-Rejection:	Rejection
Response Time:	12 s
Series:	SC Series
Terminal Type:	Ferrule
Voltage Rating:	480 VAC
