SD 1 1/2 MSG

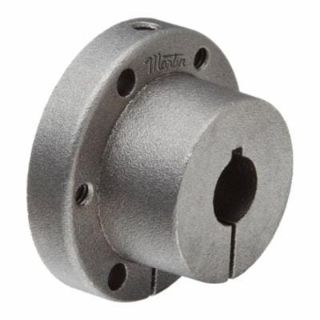

Picture of SD 1 1/2 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
SD 1 1/2
CBT Inventory
4
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
2
CBT - SIDNEY
2
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
4 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$38.84 / EA

Description

Brand Name

Martin

Type

Standard

Description

QD (quick detachable) bushings are designed for conventional mounting or reverse mounting. These bushings have a flange.
Martin QD Bushing, Standard, 1-1/2 in Bore Dia, 2.187 in Barrel Dia, 3.81 in Hub Dia, 2.688 in Bolt Circle, 3.188 in Flange Dia, 1/2 in Flange Thickness, 3 Bolt Holes, 1/4-20 x 1-7/8 in Screw, 5000 in-lb, 1.813 in Overall Length, 3/16 x 3/8 in Keyway, Ductile Iron

Features

  • Size SD bushing
  • QD (quick detachable) bushings are designed for conventional mounting or reverse mounting
  • These bushings have a flange
  • Precise machining and processes ensure consistent finish and high quality
  • Interchangeable with other manufacturers’ QD bushings

Specifications

Barrel Diameter:2.187 in
Bolt Circle Diameter:2.688 in
Bore Diameter:1-1/2 in
Country of Origin:US
Flange Diameter:3.188 in
Flange Thickness:1/2 in
Hub Diameter:3.81 in
Keyway Size:3/16 x 3/8 in
Material:Ductile Iron
Number of Bolt Holes:3
Overall Length:1.813 in
Screw Size:1/4-20 x 1-7/8 in
Torque Rating:5000 in-lb

Products Specifications

Bore Size
1-1/2"
Brand Name
Martin Sprocket & Gear
Bushing Series
SD
Measuring Units
Inch
Type
QD® Bushing
