Actual Product May Vary From Image

SDS 1/2 MSG

Name: SDS 1/2 MSG
Brand: Martin Sprocket & Gear
SKU: SDS 1/2 MSG
Price: 30.88 USD
Availability: InStock

Martin SDS 1/2 Standard QD Bushing, 1/2 in Dia Bore, 2.187 in Dia Barrel, 3-3/16 in Dia Flange, 1-5/16 in OAL, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: SDS 1/2

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	2	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Note

$30.88

Qty:

Product Details

Brand Name

Martin

Type

Standard

Description

QD (quick detachable) bushings are designed for conventional mounting or reverse mounting. These bushings have a flange.

Martin QD Bushing, Standard, 1/2 in Bore Dia, 2.187 in Barrel Dia, 3-1/2 in Hub Dia, 2-11/16 in Bolt Circle, 3-3/16 in Flange Dia, 7/16 in Flange Thickness, 3 Bolt Holes, 1/4-20 x 1-3/8 in Screw, 5000 in-lb, 1-5/16 in Overall Length, 1/16 x 1/8 in Keyway, Steel

Features

Size SDS bushing
QD (quick detachable) bushings are designed for conventional mounting or reverse mounting
These bushings have a flange
Precise machining and processes ensure consistent finish and high quality
Interchangeable with other manufacturersâ€™ QD bushings

Specifications

Barrel Diameter:	2.187 in
Bolt Circle Diameter:	2-11/16 in
Bore Diameter:	1/2 in
Country of Origin:	US
Flange Diameter:	3-3/16 in
Flange Thickness:	7/16 in
Hub Diameter:	3-1/2 in
Keyway Size:	1/16 x 1/8 in
Material:	Steel
Number of Bolt Holes:	3
Overall Length:	1-5/16 in
Screw Size:	1/4-20 x 1-3/8 in
Torque Rating:	5000 in-lb

Customers who bought this item also bought

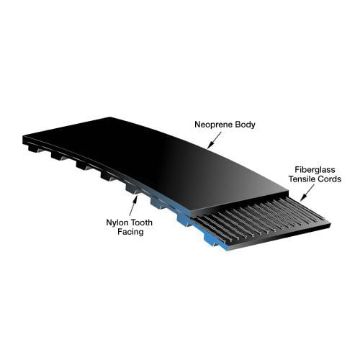

390L050 GAT

MFG: Gates Rubber

MFG#:390L050

Info:Gates® PowerGrip® 390L050 Light Timing Belt, 1/2 in W, 39 in OAL, 3/8 in Pitch, 104 Teeth, Neoprene

ATTENTION: This item is subject to a price increase beginning 01/2025. Contact your Account Manager for specific details.

$ -.--

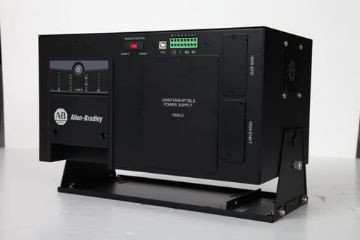

1609D1000N AB

MFG: Allen-Bradley

MFG#:1609-D1000N

Info:Uninterruptible Power Supply

$ -.--

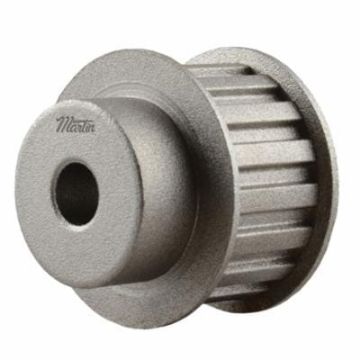

17L050 MSG
