SF 2 7/8 MSG

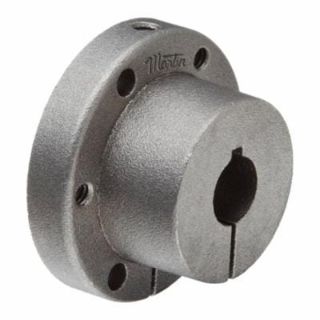

Picture of SF 2 7/8 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
SF 2 7/8
CBT Inventory
1
Vendor Inventory
Loading...
CBT - CINCINNATI
1
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$61.61 / EA

Description

Brand Name

Martin

Type

Standard

Description

QD (quick detachable) bushings are designed for conventional mounting or reverse mounting. These bushings have a flange.
Martin QD Bushing, Standard, 2-7/8 in Bore Dia, 3-1/8 in Barrel Dia, 6.38 in Hub Dia, 3-7/8 in Bolt Circle, 4-5/8 in Flange Dia, 0.563 in Flange Thickness, 3 Bolt Holes, 3/8-16 x 2 in Screw, 11000 in-lb, 2.063 in Overall Length, 1/16 x 3/4 in Keyway, Ductile Iron

Features

  • Size SF bushing
  • QD (quick detachable) bushings are designed for conventional mounting or reverse mounting
  • These bushings have a flange
  • Precise machining and processes ensure consistent finish and high quality
  • Interchangeable with other manufacturers’ QD bushings

Specifications

Barrel Diameter:3-1/8 in
Bolt Circle Diameter:3-7/8 in
Bore Diameter:2-7/8 in
Country of Origin:US
Flange Diameter:4-5/8 in
Flange Thickness:0.563 in
Hub Diameter:6.38 in
Keyway Size:1/16 x 3/4 in
Material:Ductile Iron
Number of Bolt Holes:3
Overall Length:2.063 in
Screw Size:3/8-16 x 2 in
Torque Rating:11000 in-lb

Products Specifications

Bore Size
2-7/8"
Brand Name
Martin Sprocket & Gear
Bushing Series
SF
Measuring Units
Inch
Type
QD® Bushing
