SH 1 MSG

Name: SH 1 MSG
Brand: Martin Sprocket & Gear
SKU: SH 1 MSG
Price: 26.61 USD
Availability: InStock

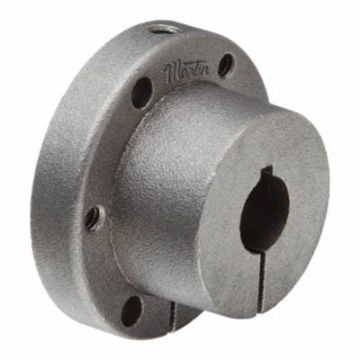

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

SH 1

CBT Inventory

Vendor Inventory

Availability:

6 in stock

Estimated dates are contingent upon manufacturer stock.

$26.61 / EA

Description

Brand Name

Martin

Type

Standard

Description

QD (quick detachable) bushings are designed for conventional mounting or reverse mounting. These bushings have a flange.

Martin QD Bushing, Standard, 1 in Bore Dia, 1.871 in Barrel Dia, 3 in Hub Dia, 2-1/4 in Bolt Circle, 2.687 in Flange Dia, 0.438 in Flange Thickness, 3 Bolt Holes, 1/4-20 x 1-3/8 in Screw, 3500 in-lb, 1.313 in Overall Length, 1/8 x 1/4 in Keyway, Steel

Features

Size SH bushing
QD (quick detachable) bushings are designed for conventional mounting or reverse mounting
These bushings have a flange
Precise machining and processes ensure consistent finish and high quality
Interchangeable with other manufacturersâ€™ QD bushings

Specifications

Barrel Diameter:	1.871 in
Bolt Circle Diameter:	2-1/4 in
Bore Diameter:	1 in
Country of Origin:	US
Flange Diameter:	2.687 in
Flange Thickness:	0.438 in
Hub Diameter:	3 in
Keyway Size:	1/8 x 1/4 in
Material:	Steel
Number of Bolt Holes:	3
Overall Length:	1.313 in
Screw Size:	1/4-20 x 1-3/8 in
Torque Rating:	3500 in-lb
