SH 5/8 MSG

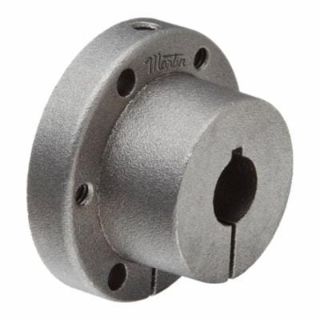

Picture of SH 5/8 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
SH 5/8
CBT Inventory
5
Vendor Inventory
Loading...
CBT - Cincinnati
2
CBT - Springboro
2
CBT - Sidney
1
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
5 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$26.61 / EA

Description

Brand Name

Martin

Type

Standard

Description

QD (quick detachable) bushings are designed for conventional mounting or reverse mounting. These bushings have a flange.
Martin QD Bushing, Standard, 5/8 in Bore Dia, 1.871 in Barrel Dia, 3 in Hub Dia, 2-1/4 in Bolt Circle, 2.688 in Flange Dia, 0.438 in Flange Thickness, 3 Bolt Holes, 1/4-20 x 1-3/8 in Screw, 3500 in-lb, 1.313 in Overall Length, 3/32 x 3/16 in Keyway, Steel

Features

  • Size SH bushing
  • QD (quick detachable) bushings are designed for conventional mounting or reverse mounting
  • These bushings have a flange
  • Precise machining and processes ensure consistent finish and high quality
  • Interchangeable with other manufacturers’ QD bushings

Specifications

Barrel Diameter:1.871 in
Bolt Circle Diameter:2-1/4 in
Bore Diameter:5/8 in
Country of Origin:US
Flange Diameter:2.688 in
Flange Thickness:0.438 in
Hub Diameter:3 in
Keyway Size:3/32 x 3/16 in
Material:Steel
Number of Bolt Holes:3
Overall Length:1.313 in
Screw Size:1/4-20 x 1-3/8 in
Torque Rating:3500 in-lb

Products Specifications

Bore Size
5/8"
Brand Name
Martin Sprocket & Gear
Bushing Series
SH
Measuring Units
Inch
Type
QD® Bushing
