SLS-05-030-1T SHD

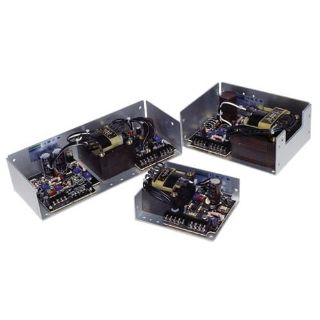

SINGLE 5V 3A OVP LINEAR PS
Manufacturer: SolaHD (Emerson)
Manufacturer part number: SLS-05-030-1T
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$115.38

Product Details

Brand Name

SolaHD

Type

Silver Line Series - Single & Multi-Output Linears

Description

Silver Line Single Output Linear Power Supply, Input Voltage: 100/120/220/230/240 Vac Selectable, Output Voltage: 5 V @ 3 A , Frequency: 47-63 HZ

Application

Industrial Control Circuits and Components, Instrumentation, Drives, CNC Machinery, Equipment for food industry, Microprocessor Circuits, Analog Circuits, Noise sensitive Circuitry and Sensors

Standards

UL Recognized Component, ITE, UL 60950-1, CSA Certified, ITE CSA C22.2 CSA 60950-1, CE, IEC60950-1

Features

Easy-to-install screw terminal connections, Cover options, Industry standard footprint, Universal input and approvals (115/230 Vac), Low noise, extremely quiet DC output. For noise sensitive or analog circuitry. Fast transient response. Ideal for test applications. Built-in OVP on 5 V models and optional on 12, 15 and 24 V models. Automatic resetting overload protection. Short circuit protected.

Specifications

Amperage Rating:3 A
Country of Origin:VN
Enclosure:Case B1
Frequency Rating:47-63 Hz
Height:5.62 in
Length:4.87 in
Voltage Rating:100/120/220/230/240 VAC
Width:2.5 in
