Actual Product May Vary From Image

SP420U FER

Name: SP420U FER
Brand: Mersen
SKU: SP420U FER
Price: 92.59 USD
Availability: OutOfStock

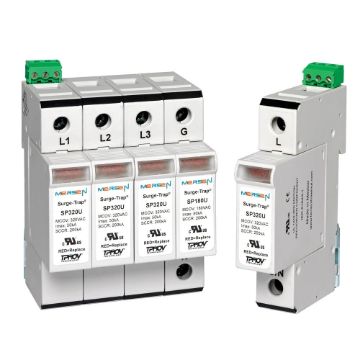

Mersen Surge-Trap® SP420U Replacement Plug, For Use With STP3471PGM, STP6003PYGM and STP6003PYM Series Surge Protective Devices, 420 VAC, IP20, 200 kA Short Circuit Rating

Manufacturer: Mersen

Manufacturer part number: SP420U

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$92.59

Qty:

Product Details

Brand Name

Mersen

Description

Surge-Trap® Pluggable SPD provides advanced overvoltage protection. Utilizing MERSEN's patented TPMOV® design, which does not require fuses, a fuse holder or additional wiring in meeting the UL 1449 Third Edition standards thus providing substantial cost savings and reduced installation times. It also features a visual indicator, easy installation, fail safe design, mechanical coding and remote monitoring. The Surge-Trap® Pluggable SPD base is designed to be mounted on 35mm DIN-rail while plugs are easily replaceable upon failure without touching the base or the hassle of rewiring. 180 V, UL Plug .

Mersen Surge-Trap® Replacement Plug, For Use With: STP3471PGM, STP6003PYGM and STP6003PYM Series Surge Protective Devices, Specifications: 420 VAC, IP20, 200 kA Short Circuit Rating, 1-3/4 in W x 3/4 in D x 2-1/4 in H Dimensions

Application

AC/DC distribution, Power supplies, Industrial automation, Telecommunications, Motor controls and starter systems, Programmable logic controller (PLC) applications, Power transfer equipment, HVAC applications, AC drives, UPS systems, Security systems, IT/Data centers, Medical equipment

Standards

ANSI/IEEE C62.41 | CE Marked | IEC 61643-1 | RoHS Compliant | UL 1449 File No. E210793

Features

Easy installation or retrofit
DIN rail mountable
Fail safe, self-protected design
Visual indicator
IP20 finger safe design
No additional overcurrent protection devices needed
Easy to replace modules

Specifications

Country of Origin:	MX
Dimensions:	1-3/4 in W x 3/4 in D x 2-1/4 in H
Specifications:	420 VAC, IP20, 200 kA Short Circuit Rating
Suitable For Use With:	STP3471PGM, STP6003PYGM and STP6003PYM Series Surge Protective Devices
