Actual Product May Vary From Image

SRL070 MSG

Name: SRL070 MSG
Brand: Martin Sprocket & Gear
SKU: SRL070 MSG
Price: 4.72 USD
Availability: InStock

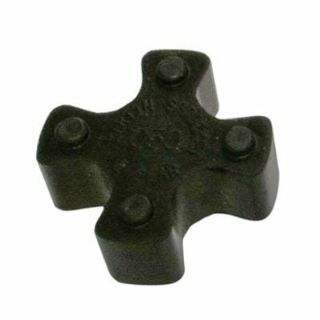

Martin SRL070 One-Piece Reborable Jaw Coupling Spider, 070 Coupling, 0.415 in L, 1-3/8 in OD, 3600 rpm Max, Rubber

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: SRL070

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
3	0
Loading...

$4.72

Qty:

Product Details

Brand Name

Martin

Type

One-Piece Reborable

Description

Martin offers two complete lines of jaw couplings, one for greater horsepower and one for interchangeability. Features include no lubrication, easy installation, no metal to metal contact resistant to oil, dirt, sand, moisture, grease, easy inspection of load carrying spider, flexibility of angular or parallel misalignment of shafts by Buna-N spider member permits smooth power transmission. Buna rubber, Hytrel® and urethane spiders are stocked in all branches.

Martin Jaw Coupling Spider, One-Piece Reborable, Series: SRL, 070 Coupling, 0.415 in Length, 1-3/8 in OD, Curved Jaw, 42 (MS)/59.4 (ML) in-lb Torque, 3600 rpm Maximum, 6 Bolts, For Use With: ML and MS Series Flexible Jaw Coupling, -40 to 212 deg F, Rubber

Application

For size 070 jaw coupling

Specifications

Country of Origin:	US
Coupling Size:	070
Jaw Type:	Curved
Length:	0.415 in
Material:	Rubber
Maximum Speed:	3600 rpm
Number of Bolts:	6
Outside Diameter:	1-3/8 in
Series:	SRL
Suitable For Use With:	ML and MS Series Flexible Jaw Coupling
Temperature Rating:	-40 to 212 deg F
Torque Rating:	42 (MS)/59.4 (ML) in-lb
