Actual Product May Vary From Image

SRL090/095 MSG

Name: SRL090/095 MSG
Brand: Martin Sprocket & Gear
SKU: SRL090/095 MSG
Price: 10.58 USD
Availability: InStock

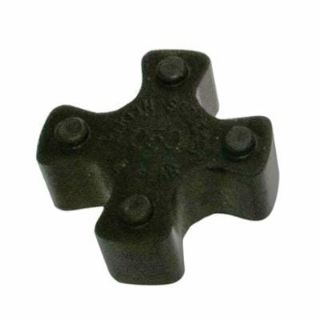

Martin SRL090/095 One-Piece Reborable Jaw Coupling Spider, 090 Coupling, 0.525 in L, 2-1/8 in OD, 3600 rpm Max, Rubber

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: SRL090/095

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
10	0
Loading...

$10.58

Qty:

Product Details

Brand Name

Martin

Type

One-Piece Reborable

Description

Martin offers two complete lines of jaw couplings, one for greater horsepower and one for interchangeability. Features include no lubrication, easy installation, no metal to metal contact resistant to oil, dirt, sand, moisture, grease, easy inspection of load carrying spider, flexibility of angular or parallel misalignment of shafts by Buna-N spider member permits smooth power transmission. Buna rubber, Hytrel® and urethane spiders are stocked in all branches.

Martin Jaw Coupling Spider, One-Piece Reborable, Series: SRL, 090 Coupling, 0.525 in Length, 2-1/8 in OD, Curved Jaw, 189 (MS)/241723 (ML) in-lb Torque, 3600 rpm Maximum, 6 Bolts, For Use With: ML and MS Series Flexible Jaw Coupling, Rubber

Application

For size 090/095 jaw coupling

Specifications

Country of Origin:	US
Coupling Size:	090
Jaw Type:	Curved
Length:	0.525 in
Material:	Rubber
Maximum Speed:	3600 rpm
Number of Bolts:	6
Outside Diameter:	2-1/8 in
Series:	SRL
Suitable For Use With:	ML and MS Series Flexible Jaw Coupling
Torque Rating:	189 (MS)/241723 (ML) in-lb
