Actual Product May Vary From Image

SRL225 MSG

Name: SRL225 MSG
Brand: Martin Sprocket & Gear
SKU: SRL225 MSG
Price: 87.57 USD
Availability: InStock

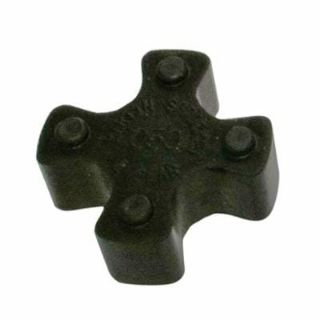

Martin SRL225 One-Piece Jaw Coupling Spider, 225 Coupling, 1.015 in L, 5 in OD, 3600 rpm Max, Rubber

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: SRL225

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
1	0
Loading...

$87.57

Qty:

Product Details

Brand Name

Martin

Type

One-Piece

Description

Martin offers two complete lines of jaw couplings, one for greater horsepower and one for interchangeability. Features include no lubrication, easy installation, no metal to metal contact resistant to oil, dirt, sand, moisture, grease, easy inspection of load carrying spider, flexibility of angular or parallel misalignment of shafts by Buna-N spider member permits smooth power transmission. Buna rubber, Hytrel® and urethane spiders are stocked in all branches.

Martin Jaw Coupling Spider, One-Piece, Series: SRL, 225 Coupling, 1.015 in Length, 5 in OD, Curved Jaw, 2268 (MS)/29208760 (ML) in-lb Torque, 3600 rpm Maximum, 6 Bolts, For Use With: ML and MS Series Flexible Jaw Coupling, -40 to 212 deg F, Rubber

Application

For size 225 jaw coupling

Specifications

Country of Origin:	US
Coupling Size:	225
Jaw Type:	Curved
Length:	1.015 in
Material:	Rubber
Maximum Speed:	3600 rpm
Number of Bolts:	6
Outside Diameter:	5 in
Series:	SRL
Suitable For Use With:	ML and MS Series Flexible Jaw Coupling
Temperature Rating:	-40 to 212 deg F
Torque Rating:	2268 (MS)/29208760 (ML) in-lb
