SS 2012 1.3/4 GAT

Name: SS 2012 1.3/4 GAT
Brand: Gates Rubber
SKU: SS 2012 1.3/4 GAT
Price: 431.65 USD
Availability: OutOfStock

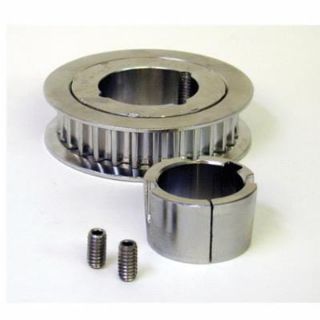

Gates® SS 2012 1.3/4 Finished Bore Taper Lock Bushing, 1-3/4 in Dia Bore, 2-3/4 in Dia Barrel, 1-1/4 in OAL, Stainless Steel

Manufacturer: Gates Rubber

Manufacturer part number: SS 2012 1.3/4

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$431.65

Qty:

Product Details

Brand Name

Gates®

Type

Finished Bore

Description

Gates Taper-Lock® bushings are flangeless for clean, compact application. They are engineered with an 8Â° taper and a flush-mounted design with no protruding parts providing secure locking and elimination of wobble. The durable stainless steel construction is ideal for food and beverage applications or where non-corrosive sprockets are needed to prevent rust.

Gates® Taper Lock Bushing, Finished Bore, 1-3/4 in Bore Dia, 2-3/4 in Barrel Dia, 3.88 in Hub Dia, 8 deg Taper, 2-5/8 in Bolt Circle, 2 Bolt Holes, 7/16-14 x 7/8 in Screw, 7150 in-lb, 1-1/4 in Overall Length, 3/8 x 3/16 in Keyway, Stainless Steel

Application

For the food and beverage market or where non-corrosive sprockets are needed to prevent rust

Features

Size 2012 bushing
Bushings are made to precise tolerances
Stainless steel bushings are corrosion resistant, preventing rust build up and increasing product life

Specifications

Barrel Diameter:	2-3/4 in
Bolt Circle Diameter:	2-5/8 in
Bore Diameter:	1-3/4 in
Country of Origin:	US
Hub Diameter:	3.88 in
Keyway Size:	3/8 x 3/16 in
Material:	Stainless Steel
Number of Bolt Holes:	2
Overall Length:	1-1/4 in
Screw Size:	7/16-14 x 7/8 in
Taper:	8 deg
Torque Rating:	7150 in-lb
