Actual Product May Vary From Image

SS-4856-22 ISO

Name: SS-4856-22 ISO
Brand: Isostatic
SKU: SS-4856-22 ISO
Price: 12.00 USD
Availability: OutOfStock

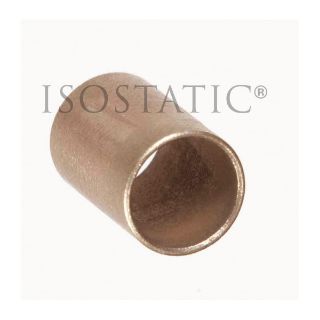

ISOSTATIC™ Oilube® 401462 Round Bore Sleeve Bearing, 1-1/2 in Dia Bore, 1-3/4 in OD, 1-3/8 in W

Manufacturer: Isostatic

Manufacturer part number: 401462

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$12.00

Qty:

Product Details

Brand Name

ISOSTATIC™

Type

Round Bore

Description

ISOSTATIC™ Oilube® Sleeve Bearing, Round Bore, 1-1/2 in Bore, 1-3/4 in OD, 1-3/8 in Width, 10 to 175 deg F, 2000 psi Maximum, 1200 sfpm Maximum Velocity, 50000 psi/sq-ft/min Maximum PV, SAE 841 Powdered Metal/Oil Impregnated Bronze Bearing

Standards

ROHS | REACH | DFARS Compliant | PROP65: This product can expose you to chemicals including polybrominated biphenyls which is known to the state of California to cause cancer and cadmium which is known to the state of California to cause birth defects or other reproductive harm. For more information go to www.P65WARNINGS.ca.gov

Features

Standard stock products
SAE 841 copper (87 to 90%), tin (8 to 9%), carbon and other elements
Powdered metal bronze providing interconnected reservoirs for oil
Vacuum impregnated with SAE 30 oil during the manufacturing process
Self-lubricating, when in motion oil rises to the surface for lubrication and restores itself when at rest
Ideal for heavy loads at moderate speeds or light loads at high speeds

Specifications

Bearing Material:	SAE 841 Powdered Metal/Oil Impregnated Bronze
Bore Diameter:	1-1/2 in
Country of Origin:	US
Maximum Pressure:	2000 psi
Maximum PV Rating:	50000 psi/sq-ft/min
Maximum Velocity:	1200 sfpm
Outside Diameter:	1-3/4 in
Temperature Rating:	10 to 175 deg F
Width:	1-3/8 in
